Aerpro Vehicle Specific Reverse Camera Suit for Jeep Wrangler Spare Wheel Mount

Contents : 1x Aerpro Vehicle Specific Reverse Camera

Suit Vehicle :

Jeep Wrangler 2007-2015
Jeep Wrangler 2015-2018
Jeep Wrangler 2018-On

Description:

The Aerpro G181V Vehicle Specific Reverse Camera is a bracket mounted reversing camera suitable for fitment onto Jeep Wrangler JK (2007-2018) vehicles. The mounting bracket affixes behind the spare wheel, allowing for easy fitment to the Jeep. The camera has a resolution of 720 x 480 and a field of view of 170 degrees, giving the driver a clear view at the rear of the vehicle. It is also IP67 rated which will withstand harsh operating environments often experiences on the exterior of the vehicle. This camera connects to NTSC compatible aftermarket displays / head units with a RCA camera input.

Features

• Designed to mount behind the spare wheel at the rear of the vehicle, providing a discreet and professional rear camera solution
• Vehicle specific design, no additional holes need to be drilled into the vehicle
• High quality image sensor produces clear images and enhanced low light performance
• 170 Degree field of view minimises blind spots at the rear of the vehicle
• IP67 Rating makes it suitable for use in the harsh Australian conditions
• Parking guidelines to assist with reverse parking (can be removed during installation)
• 6M Length extension cable to run between the front and back of the vehicle
• NTSC Compatible with RCA connection makes it suitable for use with most NTSC aftermarket display monitors and head units

Specifications

• VEHICLE COMPATIBILITY: JEEP WRANGLER JK 2007-2018 (SPARE WHEEL MOUNT)
• CAMERA TYPE: REVERSE
• IMAGE SENSOR: 1/3 INCH
• RESOLUTION: 720 x 480
• LENS ANGLE: 170 DEGREE
• PAL/NTSC: NTSC
• PARKING GUIDELINES: SWITCHABLE
• MIRROR IMAGE: SWITCHABLE
• MONITOR CONNECTION TYPE: RCA
• MINIMUM ILLUMINATION: 0.1 LUX
• OPERATING VOLTAGE: 12-24V DC
• IP RATING: IP67
• OPERATING TEMPERATURE (C): -20 DEGREES TO +75 DEGREES

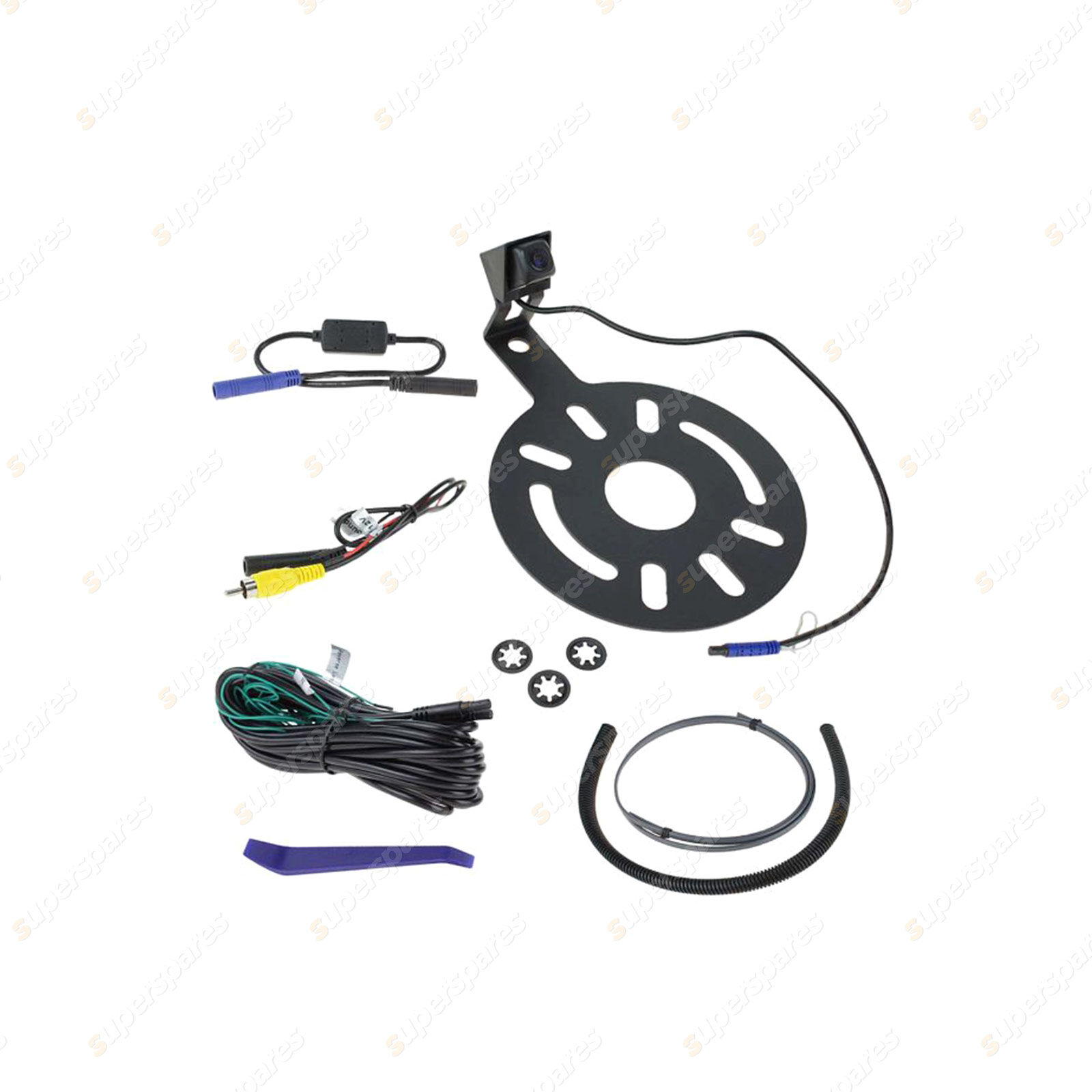

• INCLUSIONS:
• CAMERA WITH CABLE TO MINI MALE 6-PIN CONNECTOR
• POWER ADAPTER WITH COLOUR CODED FEMALE 6-PIN TO FEMALE 4-PIN CONNECTORS
• 6M MALE TO MALE 4-PIN EXTENSION CABLE WITH GREEN FLYING WIRES
• VIDEO OUTPUT CABLE WITH RED & BLACK WIRES AND YELLOW RCA CONNECTOR
• INSTALLATION ACCESSORIES INCLUDING WASHERS AND WIRE TUBING
• NOTES:
• This camera connects to NTSC compatible aftermarket displays / head units with a RCA camera input.
