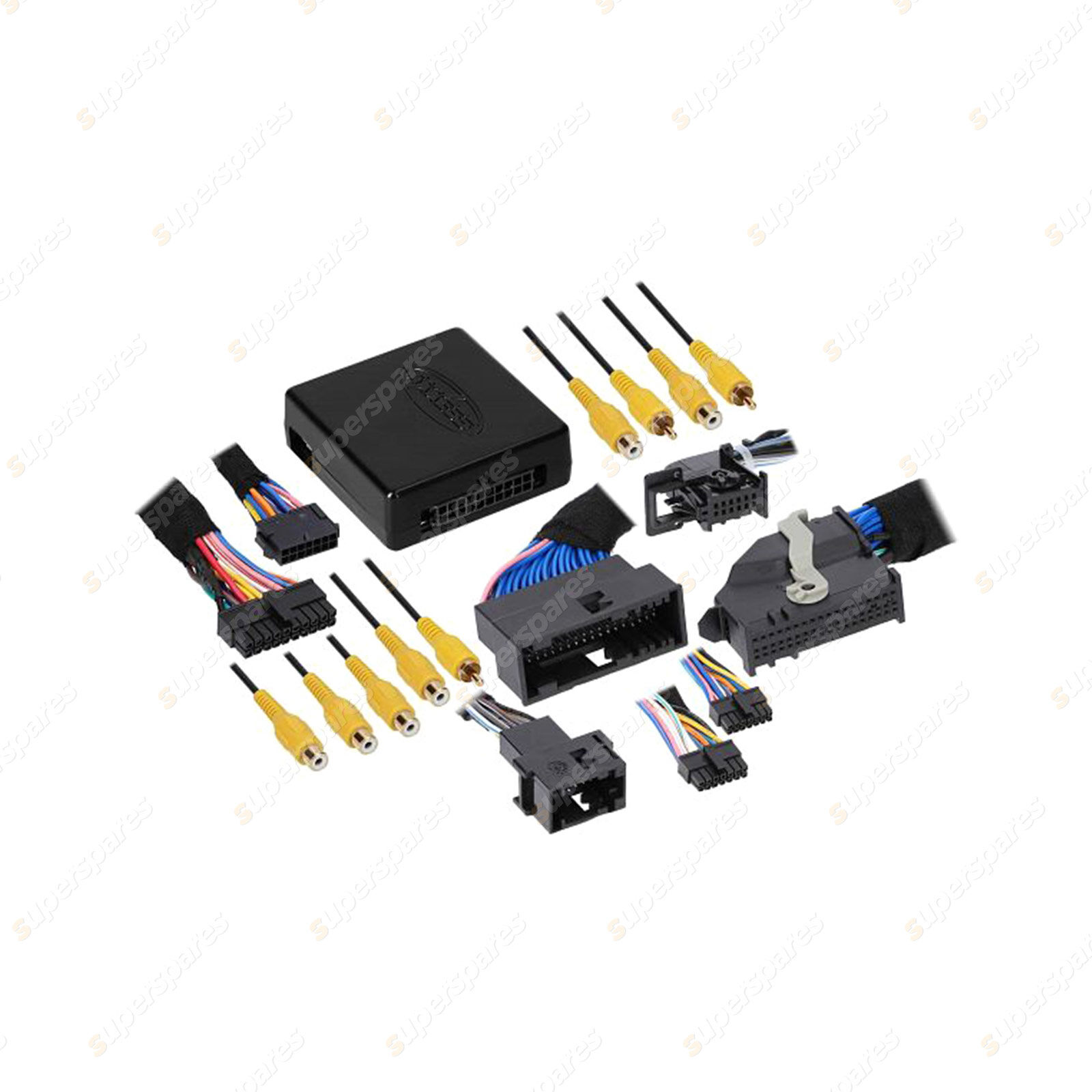

Aerpro Multiple Camera Add-on Interface Suit for Ford Ranger PX MKIII 2018-2021

Contents : 1x Aerpro Multiple Camera Add-on Interface

Suit Vehicle : Ford Ranger 2018-2021 PX MkIII

Description:

The Aerpro APVFD03 Camera Interface allows multiple cameras to be added to the OEM display of Ford Ranger PX3 (2018-on) models with 4.2-inch, 6.5-inch or 8-inch display screen. The interface provides up to three additional camera inputs to the factory radio, while still retaining the factory reverse camera. With this interface a front camera, and/or side cameras, can be added to the factory radio. The cameras function automatically and also have a customisable trigger option (via the Axxess Updater Program) if manual switching is required. The interface can also be used if the vehicle does not come equipped with a reverse camera, adding up to four cameras in this scenario.

Important Information:

Camera Interfaces can vary between vehicle models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.

Models equipped with NAV can only use front and rear camera inputs.

APVFD03A (sold separately) required for 2014-up models with a 4.2-inch display screen.

Micro USB cable (sold separately) required to use the Axxess Updater Program.

Features

• Add up to 3 additional cameras to the factory screen, while retaining the use of the factory reverse camera
• Will support up to 4 cameras for vehicles without factory reverse camera
• Programmable 12V/5A switched output (configured through the Axxess Updater Program)
• Reverse & turn signal trigger generated via CAN bus communication of the vehicle
• 4 Programmable camera control wires (configured through the Axxess Updater Program)
• Simple installation, vehicle specific harness included
• Micro-B USB updatable

Specifications

• Interface Type: Camera Add-On
• Camera Inputs:
• Input 1: Reverse Camera
• Input 2: Left or Right Camera (user assignable)
• Input 3: Left or Right Camera (user assignable)
• Input 4: Front Camera (user assignable)
• Optional Manual Control Wires
• Control 1: Grey/Blue
• Control 2: Grey/Red
• Control 3: Orange
• Control 4: Orange/White
• Important Information:
• Camera Interfaces can vary between vehicle models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
• Models equipped with NAV can only use front and rear camera inputs.
• APVFD03A (sold separately) required for 2014-up models with a 4.2-inch display screen.
• Micro USB cable (sold separately) required to use the Axxess Updater Program.
