Aerpro Double DIN Matte Black Install Kit - Non Amplified for Audi Q5 8R 09-16

Contents : 1 x Aerpro Double Din Matte Black Install Kit

Suit Vehicle :

Audi Q5 2009-2016 (8R)

Specifications

• APPLICATION: DOUBLE DIN
• COLOUR: MATTE BLACK
• FACIA INTERNAL DIMENSIONS: 172mm (W) x 98mm (H)
• FACIA EXTERNAL DIMENSIONS: 310mm TOP / 239mm BASE (W) x 141mm (H)

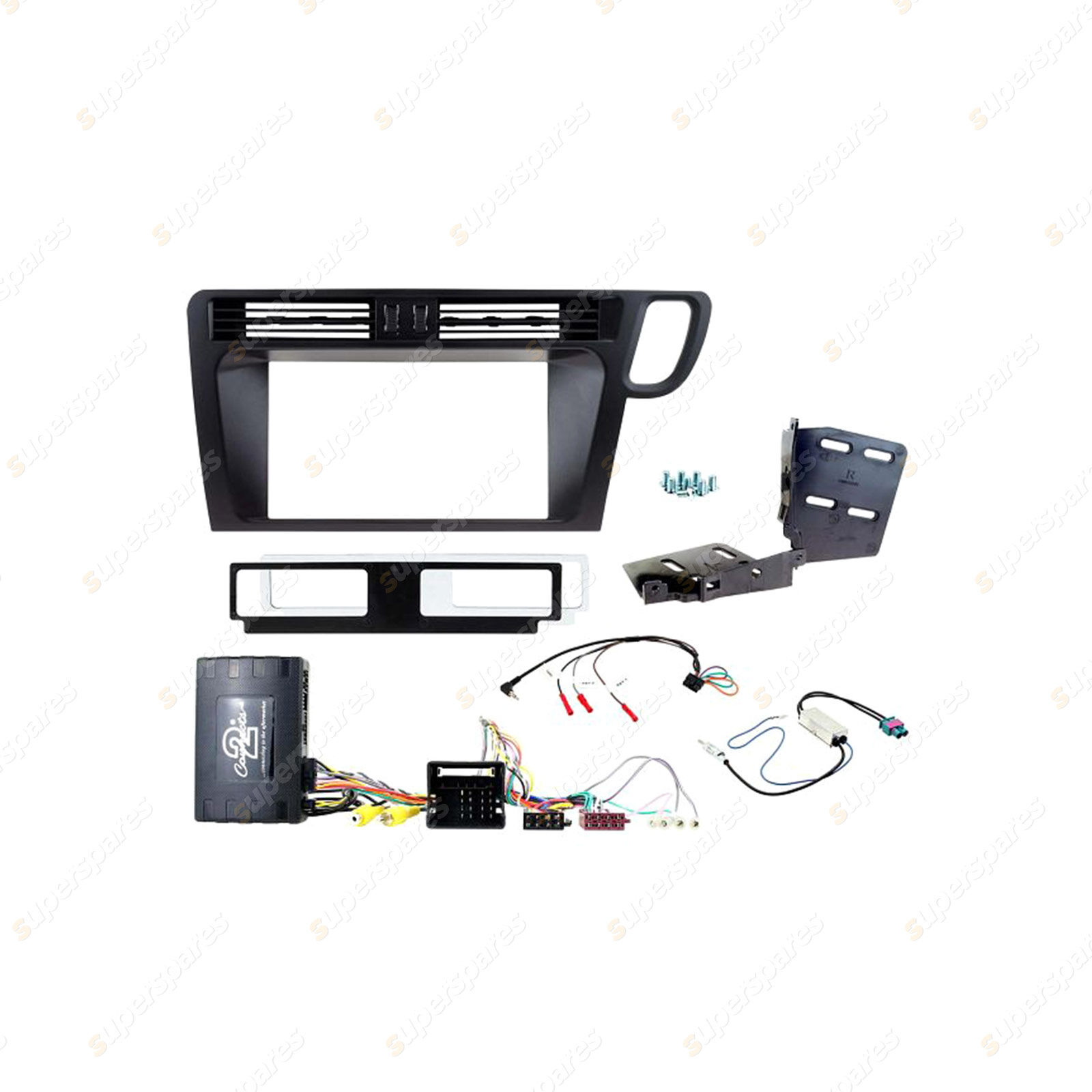

INCLUSIONS:

• DOUBLE DIN FACIA KIT
• MOUNTING BRACKETS
• AIR VENT BRACKET AND MOUNT
• MOUNTING HARDWARE
• STEERING WHEEL CONTROL INTERFACE
• MAIN WIRING HARNESS
• ANTENNA ADAPTER
• UNIVERSAL SWC PATCH LEAD
• IMPORTANT INFORMATION:
• Install Kits can vary between vehicle models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
• This kit is intended for non-MMI vehicles without a factory amplified system only.
• This kit is only compatible with aftermarket AV head units that have RCA reverse camera input and are SWC compatible.
• To retain a factory fitted camera, an additional vehicle specific camera retention harness is also required (if available, sold separately).

Description:

Complete a full aftermarket double DIN head unit installation in your Audi Q5 (2009-2016) non-MMI vehicle without a factory amplified system, with this Aerpro FP8572K Installation Kit. The kit will retain important factory features including steering wheel controls. Containing everything you need for a perfect upgrade in one box, this kit includes: a matte black double DIN facia kit with integrated air vents, air vent bracket and mount, mounting brackets, mounting hardware, infodapter interface with main wiring harness, antenna adapter and universal steering wheel control patch lead. To simplify installation add an Aerpro APP8 or APP9 aftermarket head unit harness which will connect from the aftermarket head unit directly into the steering wheel control interface harness supplied in this kit.

Important Information:

Install Kits can vary between vehicle models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.

This kit is intended for non-MMI vehicles without a factory amplified system only.

This kit is only compatible with aftermarket AV head units that have RCA reverse camera input and are SWC compatible.

To retain a factory fitted camera, an additional vehicle specific camera retention harness is also required (if available, sold separately).

Features

• Kit includes all the parts required to complete an installation of an aftermarket head unit conveniently in one box
• Suitable for double DIN aftermarket head unit installation
• High quality matte black finish on facia kit to suit the style of the dashboard in the vehicle
• Suitable for non-MMI vehicles without a factory amplified system only
• Retains steering wheel control functionality including phone button
• Park assist visualisation (if equipped)
• Retains access to vehicle settings, menus and controls
• CAN-BUS integration compatible
• Provides output feeds for park brake, speed pulse and reverse gear
• To simplify installation add an Aerpro APP8 or APP9 aftermarket head unit harness (sold separately)
