Aerpro Double DIN Install Kit Suit for Chevrolet Silverado 14-19 - Mylink 7"

Contents : 1x Aerpro Double DIN Install Kit

Suit Vehicle : Chevrolet Silverado 2014-2019

Description:

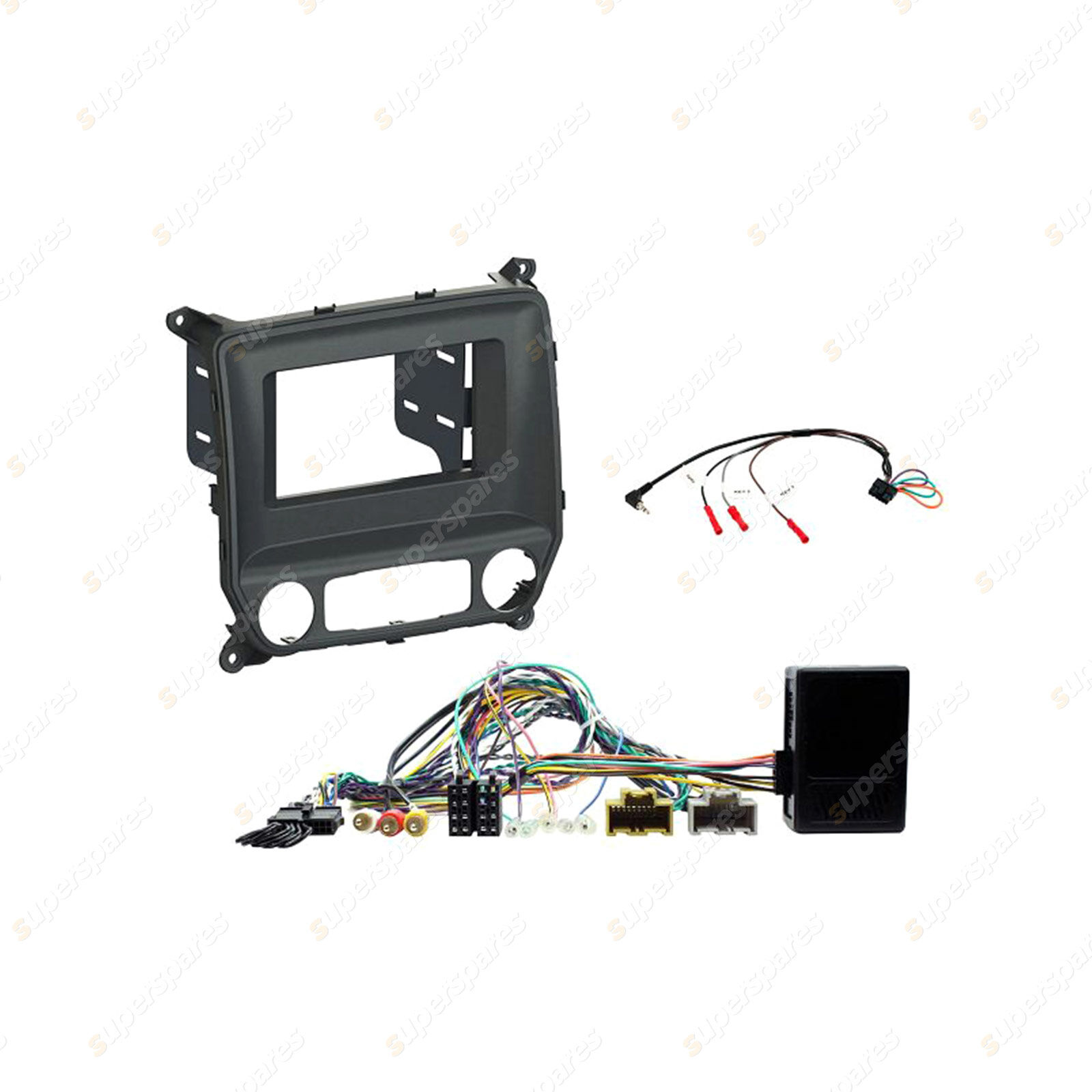

Complete a full aftermarket double din headunit installation in your Chevrolet Silverado WT (2014 on) with MyLink 7" system and without OEM steering wheel controls, from start to finish with this Aerpro vehicle specific headunit installation kit, containing everything you need for a perfect upgrade in one box. This kit includes: Facia kit, mounting brackets, vehicle interface harness and antenna adapter. To make the installation process even easier, simply add an Aerpro APP8 headunit harness adapter which will connect from the aftermarket headunit directly into the vehicle interface harness supplied in this kit.

NOTE: The included vehicle interface harness does not retain the factory display of vehicle comfort settings. These settings need to be programmed prior to removing the factory unit as they will not be accessible. Store factory unit in a safe place, as to change these settings at a later date, the factory unit would need to be plugged back in. Usually the CAGM07 would be able to retain the vehicle comfort menu settings but this requires the vehicle to have steering wheel controls that are not featured in the WT.

Features

• Kit includes all the parts required to complete an installation of an aftermarket headunit conveniently in one box
• Suitable for double din aftermarket headunit installation
• High quality black finish on facia kit to suit the style of the dashboard in the vehicle
• Compatible with vehicles that have Mylink 7" OEM factory headunits
• Retains warning chimes
• CAN-BUS integration compatible, no additional modules required for CAN-BUS vehicles
• Provides output feeds for park brake, speed pulse, reverse gear and illumination
• To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapter

Specifications

• APPLICATION: DOUBLE DIN
• COLOUR: BLACK
• INTERNAL DIMENSIONS: 173mm (W) x 99mm (H)
• EXTERNAL DIMENSIONS: 285mm (W) TOP / 220mm (W) BASE x 247mm (H)
• INCLUSIONS:
• FACIA KIT
• MOUNTING BRACKETS
• VEHICLE INTERFACE HARNESS (CHCV5C)
• ANTENNA ADAPTER
• NOTES:
• Suitable for vehicles with a factory Mylink 7" headunit
• Warning chime speaker built into vehicle interface harness
• The included vehicle interface harness does not retain the factory display of vehicle comfort settings. These settings need to be programmed prior to removing the factory unit as they will not be accessible. Store factory unit in a safe place, as to change these settings at a later date, the factory unit would need to be plugged back in
• As the WT does not feature steering wheel control buttons, the patch lead is not used.
