Aerpro Double DIN Black Install Kit - Large Oem Display for Land Rover Discovery

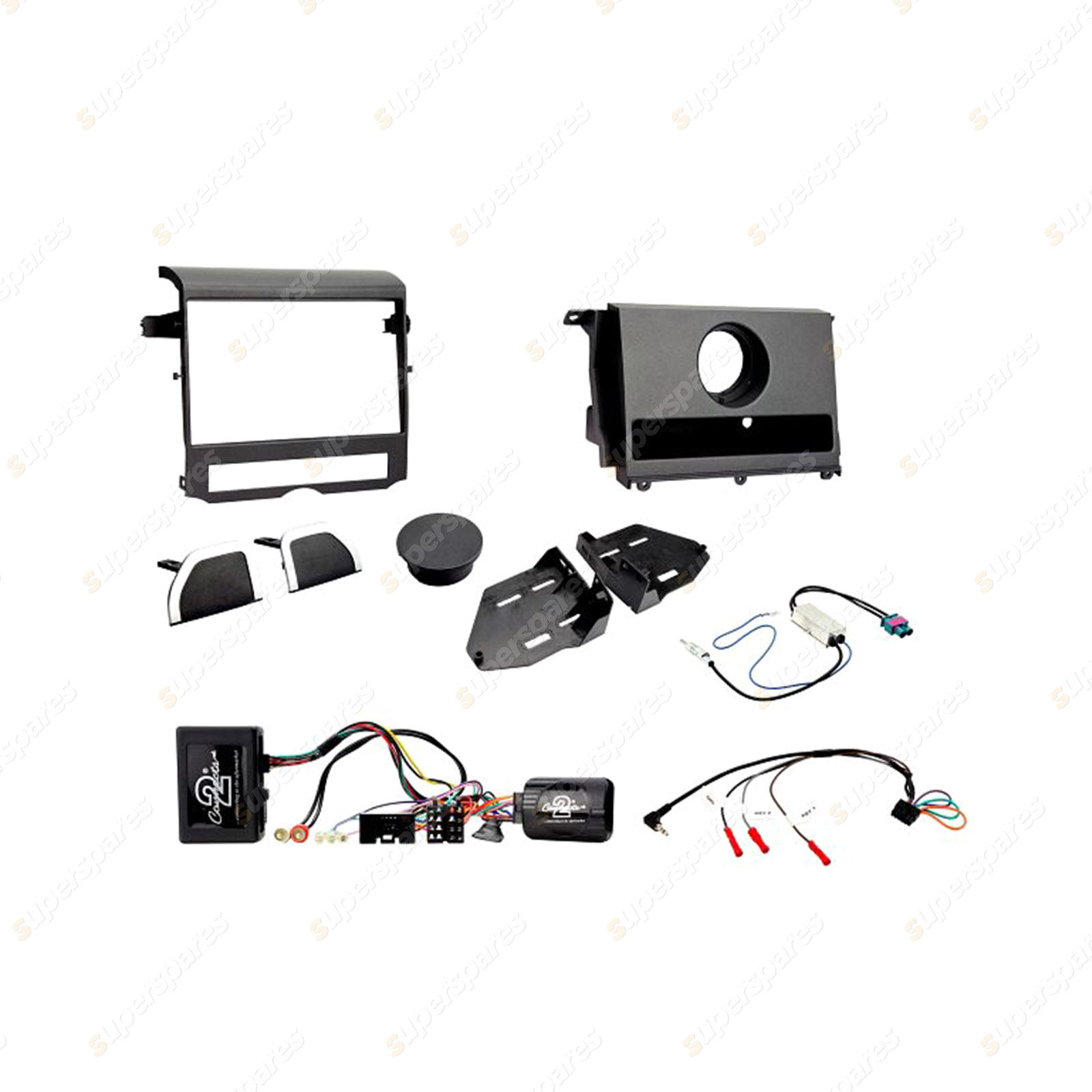

Contents : 1 x Aerpro Double Din Black Install Kit

Suit Vehicle :

Land rover Discovery 4 2009-2012

Specifications

• APPLICATION: DOUBLE DIN
• COLOUR: BLACK
• INTERNAL DIMENSIONS: 172mm (W) x 98mm (H)
• EXTERNAL DIMENSIONS: 179mm (W) x 180mm (H)

INCLUSIONS:

• DOUBLE DIN FACIA KIT
• OEM SCREEN REPLACEMENT CLOCK RELOCATION PANEL
• MOUNTING BRACKETS
• TRIM RING
• STEERING WHEEL CONTROL INTERFACE WITH AMP RETENTION MODULE
• ANTENNA ADAPTOR
• UNIVERSAL SWC PATCH LEAD

NOTES:

• Aftermarket headunit must be SWC compatible.
• SWC patch lead is also required to enable SWC (sold separately).
• This Install Kit is suitable for Landrover Discovery 4 models with Large OEM Displays.
• Center bar must be cut, the vehicle can not be restored to factory configuration following this modification.
• Only compatible with stereos that have a front face dimension of 178mm x 96mm.
• To maintain MOST 25 OEM Amplified System, the aftermarket headunit requires RCA pre-outs.
• Kit does not retain OEM clock.

Description:

Complete a full aftermarket double DIN headunit installation in your Landrover Discovery 4 (2009-2016) with large OEM display, from start to finish with this Aerpro vehicle specific headunit installation kit, containing everything you need for a perfect upgrade in one box. This kit includes: black double DIN facia kit, OEM screen replacement clock relocation panel, mounting brackets, steering wheel control interface with amp retention module, antenna adaptor and universal SWC patch lead. Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead, which connects between the aftermarket headunit and the Aerpro Steering Wheel Control Interface. The kit also retains the OEM amplified system.

Please Note:

Total Installation Kits can vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.

Aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.

Headunit ISO harness not included in the kit. Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (sold separately).

This Install Kit is suitable for Landrover Discovery 4 models with Large OEM Displays.

Center bar must be cut, the vehicle can not be restored to factory configuration following this modification.

Only compatible with stereos that have a front face dimension of 178mm x 96mm.

To maintain MOST 25 OEM Amplified System, the aftermarket headunit requires RCA pre-outs.

Kit does not retain OEM clock.

Features

• The kit includes all the parts required to complete an installation of an aftermarket headunit conveniently in one box
• Suitable for double DIN aftermarket headunit installation
• High quality black finish on facia kit to suit the style of the dashboard in the vehicle
• Retains steering wheel control functionality in the vehicle including phone button
• Also retains OEM MOST amplified system
• Suitable for vehicles with large OEM display
• CAN-BUS and fibre optic compatible, no additional modules required
• Provides output feeds for park brake, speed pulse and reverse gear
• Fitted with a vehicle specific plug, no cutting of wires required
• Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (sold separately)
