Aerpro 9" Head Unit Kit - for Subaru Forester Impreza XV With Touchscreen

Contents : 1x Aerpro 9" Head Unit Kit

Suit Vehicle :

Subaru Forester 2013-2014 SJ
Subaru Impreza 2012-2014 GP, GJ
Subaru XV 2012-2015

Description:

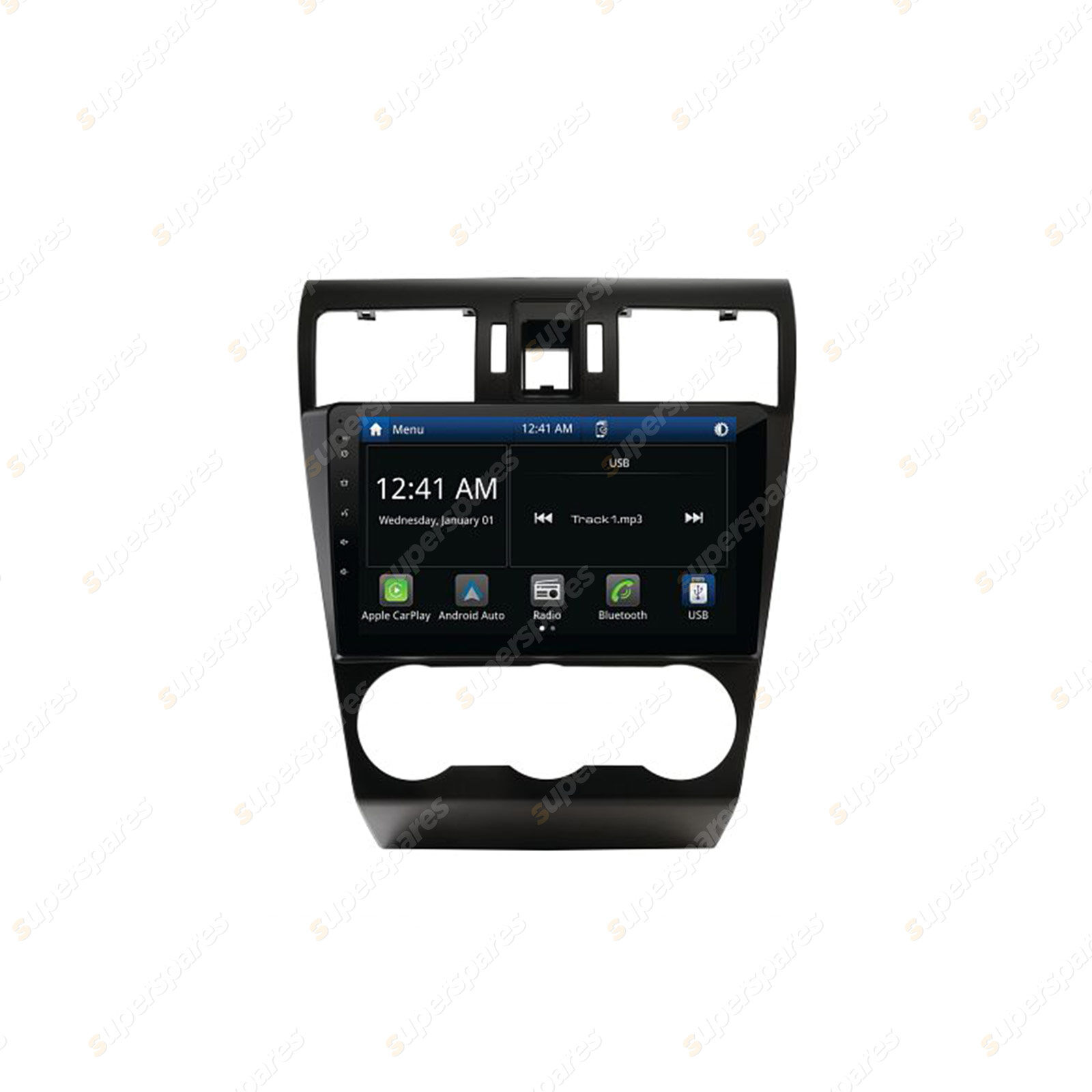

The Aerpro AMSU2 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Subaru Forester SJ (2013-2014), Impreza GP, GJ (2012-2014) and XV (2012-2015) vehicles with a factory 6.1" touchscreen. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner. Sound quality is superb with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMSU2 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, USB input, AUX input and the factory reverse camera (if equipped).Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.

This model suits vehicles with a factory 6.1" factory touchscreen (Fujitsu 10 Denso head unit). For vehicles without a factory 6.1" touchscreen (Clarion head unit) please use kit AMSU1.

This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.

Reverse Camera Retention uses the reverse camera input of the head unit.

USB Input Retention uses the USB input on the rear of the head unit.

AUX Input Retention uses the RCA AUX input on the rear of the head unit.

This head unit is sold as a kit which includes:

AM9X Multimedia Receiver

Black Facia Kit

Steering Wheel Control Interface Harness

SWC Patch Lead

Antenna Adaptor

Camera Retention Adaptor

USB Retention Adaptor

Features

• To suit Subaru Forester SJ (2013-2014), Impreza GP, GJ (2012-2014) and XV (2012-2015) vehicles with a factory 6.1" touchscreen
• Includes all the parts required to complete the installation and to retain important vehicle features
• Apple CarPlay & Android Auto (wireless / wired)
• Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
• Large 9" capacitive touchscreen display
• Steering wheel control (including phone button), USB input, AUX input and factory reverse camera retention (if equipped)
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Rear USB input (1.5A max charging)
• Reverse camera input (AHD 720P compatible) & rear A/V input
• 40Wx4 Max with 8 band graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control

Specifications

AMSU2 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

Kit Inclusions:

AM9X Multimedia Receiver
Black Facia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Antenna Adaptor
Camera Retention Adaptor
USB Retention Adaptor

Vehicle Feature Retention:

Steering Wheel Controls: Yes
Factory Reverse Camera: Yes (if equipped)
AUX Input: Yes (if equipped)
USB Input: Yes (if equipped)
Parking Tones: N/A
Factory Amplifier: N/A
Vehicle Menu: N/A
Other: N/A

AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:

LCD Display:

Size: 9"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)

System Specifications:

OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB

DIN Size:2 DIN Short Body

Power Output

Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W

Media Playback:MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4

Device Ports

USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB

Aux Inputs / Outputs:

Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)

Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)

Bluetooth

Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6

Tuner

AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola

RCA Preamp Outputs:

RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p

Tone Control:

8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft

Other Features:

Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White

Accessories:

Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included

IMPORTANT INFORMATION

Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
This model suits vehicles with a factory 6.1" factory touchscreen (Fujitsu 10 Denso head unit). For vehicles without a factory 6.1" touchscreen (Clarion head unit) please use kit AMSU1.
This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
Reverse Camera Retention uses the reverse camera input of the head unit.
USB Input Retention uses the USB input on the rear of the head unit.
AUX Input Retention uses the RCA AUX input on the rear of the head unit.
