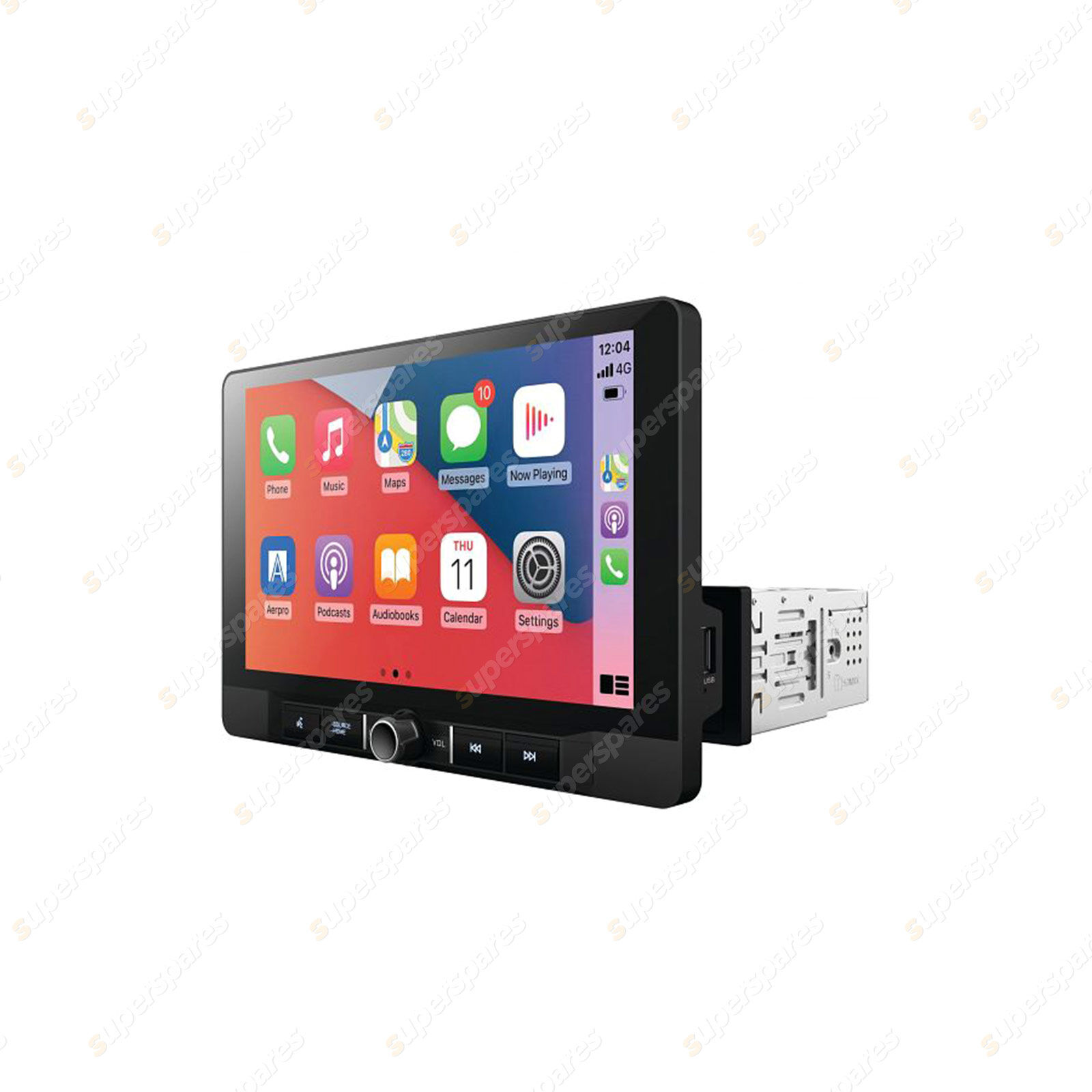

Aerpro 9" Floating Multimedia Receiver - with Dual USB Inputs Built-in Bluetooth

Contents : 1x Aerpro 9" Floating Multimedia Receiver

Description:

The Aerpro AM9XFW Multimedia Receiver with Wireless Apple CarPlay and Android Auto features a large 9" floating capacitive touch screen display with 4-way position adjustment (height, depth, tilt & pivot). The built-in Bluetooth enables hands-free phone calls and wireless audio streaming and the included external microphone provides crystal clear communications. It has dual USB inputs, one at the front for charging and USB media playback and one in the rear for wired Apple CarPlay and Android Auto connection. Sound quality is superb with a built in 40Wx4 amplifier, 8 band graphic EQ and time alignment capabilities for precise sound adjustment. If more sound is desired, an amplifier can be added to the system via the 4V/6CH RCA preouts (front + rear + subwoofer). The unit is OEM steering wheel remote ready and has a 720P AHD compatible reverse camera input.This head unit is not sold separately, it is sold as part of a complete vehicle specific installation kit.

This head unit is a short chassis double din unit with fixed face design. It is compatible for use with Aerpro 9" Facia Kits only. It is not designed to fit into a standard double din facia kit.This head unit has a single DIN chassis.

Aerpro Steering Wheel Control Interface and patch lead required for steering wheel control integration (sold separately).

Features

• Large 9" floating capacitive touchscreen LCD (1024 x 600)
• Floating display with 4-way adjustment: height, depth, tilt and pivot
• Works with Apple CarPlay (wireless or wired)
• Supports Android Auto (wireless or wired)
• Built-in Bluetooth (A2DP, AVRCP, HFP, PBAP)
• Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
• AM / FM Tuner with 30 presets (18FM/12AM)
• Reverse camera input (AHD 720P compatible)
• Rear A/V input
• 4V / 6CH RCA Preout (front + rear + subwoofer)
• MP3 / MP4 / Xvid / FLAC Media formats
• Dual USB Inputs (front 2.1A, rear 1.5A)
• 8 Band graphic EQ
• 8 EQ Presets
• Time alignment capabilities
• Subwoofer level control
• 40Wx4 Max built-in amplifier
• Single DIN chassis mounting design
• Steering wheel control ready (SWC interface and patch lead required, not included)
• External microphone included

Specifications

LCD Display:
Size: 9"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
Screen Adjustment: Height 1.5" (down), Depth 0", 0.5", 1" (forward), Tilt 25 Degrees (forward and back), Pivot 12 Degrees (side to side)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 1 DIN Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback: MP3 / MP4 / Xvid / FLAC
Device Ports:
Front USB: 5V / 2.1A, Media/Charging
Rear USB: 5V / 1.5A, CP/AA/USB media
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: External Microphone Included
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 531-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Dual Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC interface and patch lead (not included)
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input: Yes
4.2CH Audio Out Cable: Yes
External Microphone: Included
Important Information:
This head unit has a single DIN chassis.
Aerpro Steering Wheel Control Interface and patch lead required for steering wheel control integration (sold separately).
