Contents : 1x Aerpro 10" Multimedia Receiver
Suit Vehicle : Toyota Kluger 2007-2013 "Grande"
Description:

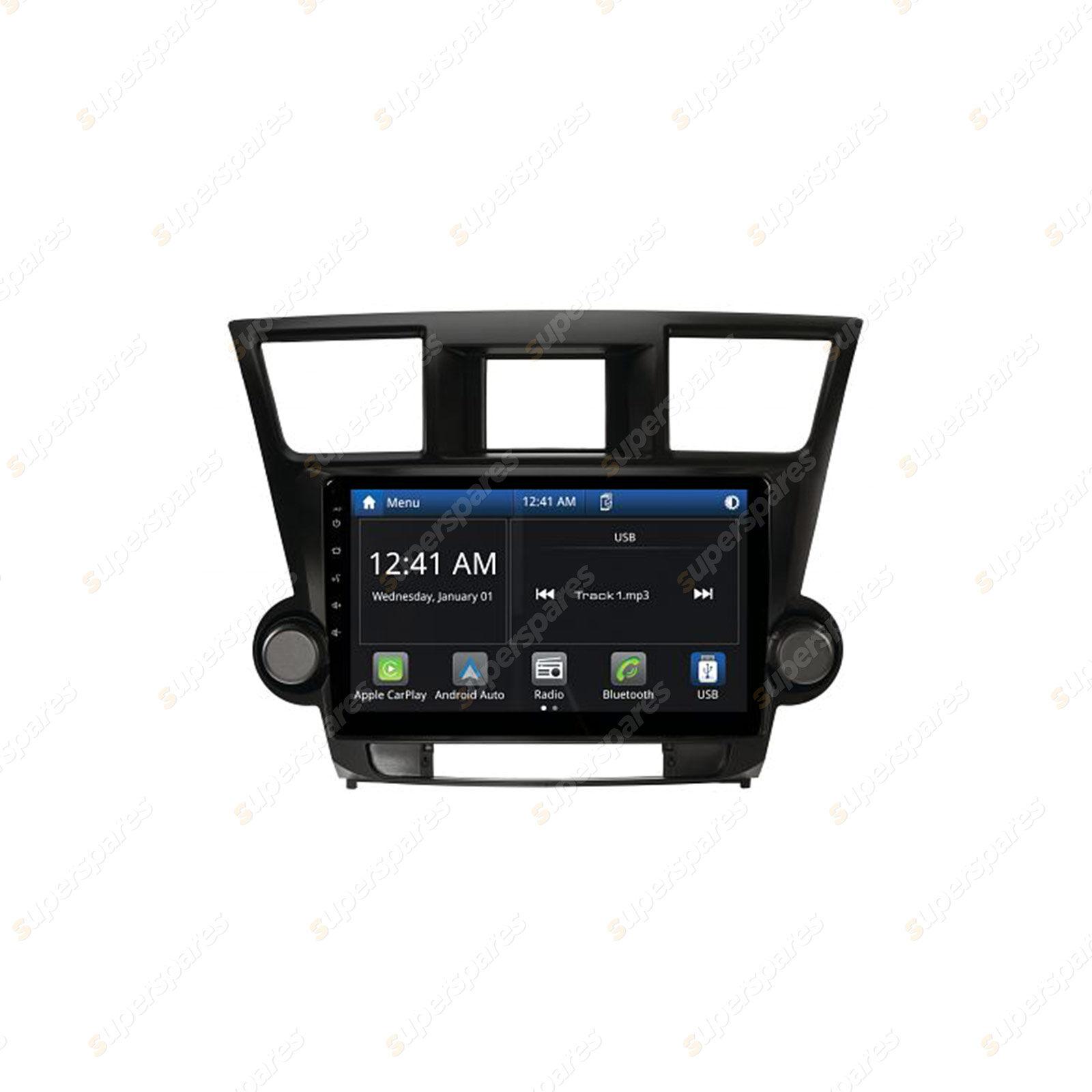

The Aerpro AMTO6 10" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Toyota Kluger (2007-2013) non-amplified vehicles. Featuring a large 10" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner. Sound quality is superb with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMTO6 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls and factory reverse camera (if equipped).Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Suits non-amplified vehicles only, use Aerpro AMTO7 if vehicle is factory amplified.
Reverse Camera Retention uses the reverse camera input of the head unit.
This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
This head unit is sold as a kit which includes:
AM10X Multimedia Receiver
Black Facia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Camera Retention Adaptor
Hazard Switch
Features
- To suit Toyota Kluger (2007-2013) non-amplified vehicles
-
Includes all the parts required to complete the installation and to retain important vehicle features
-
Apple CarPlay & Android Auto (wireless / wired)
-
Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
-
Large 10" capacitive touchscreen display
-
Steering wheel control and factory reverse camera retention (if equipped)
-
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
-
AM / FM Tuner with RDS & presets (18FM/12AM)
-
Rear USB input (1.5A max charging)
-
Reverse camera input (AHD 720P compatible) & rear A/V input
-
40Wx4 Max with 8 band graphic EQ and time alignment capabilities
-
4V/5CH RCA Preout and subwoofer level control
Specifications
AMTO6 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
Kit Inclusions:
AM10X Multimedia Receiver
Black Facia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Camera Retention Adaptor
Hazard Switch
Vehicle Feature Retention:
Steering Wheel Controls: Yes
Factory Reverse Camera: Yes (if equipped)
AUX Input: N/A
USB Input: N/A
Parking Tones: N/A
Factory Amplifier: No
Vehicle Menu: N/A
Other: N/A
AM10X MULTIMEDIA RECEIVER SPECIFICATIONS:
LCD Display:
Size: 10"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size:2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback:MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Suits non-amplified vehicles only, use Aerpro AMTO7 if vehicle is factory amplified.
Reverse Camera Retention uses the reverse camera input of the head unit.
Side dials on kit are cosmetic only and have no function
This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
