Contents : 1x Aerpro 10" Head Unit
Suit Vehicle :
Volkswagen Amarok 2017-On
Volkswagen Caddy 2015-2020
Volkswagen Multivan 2016-2019
Volkswagen Tiguan 2015-2016
Volkswagen Transporter T6 2016-2019
Description:

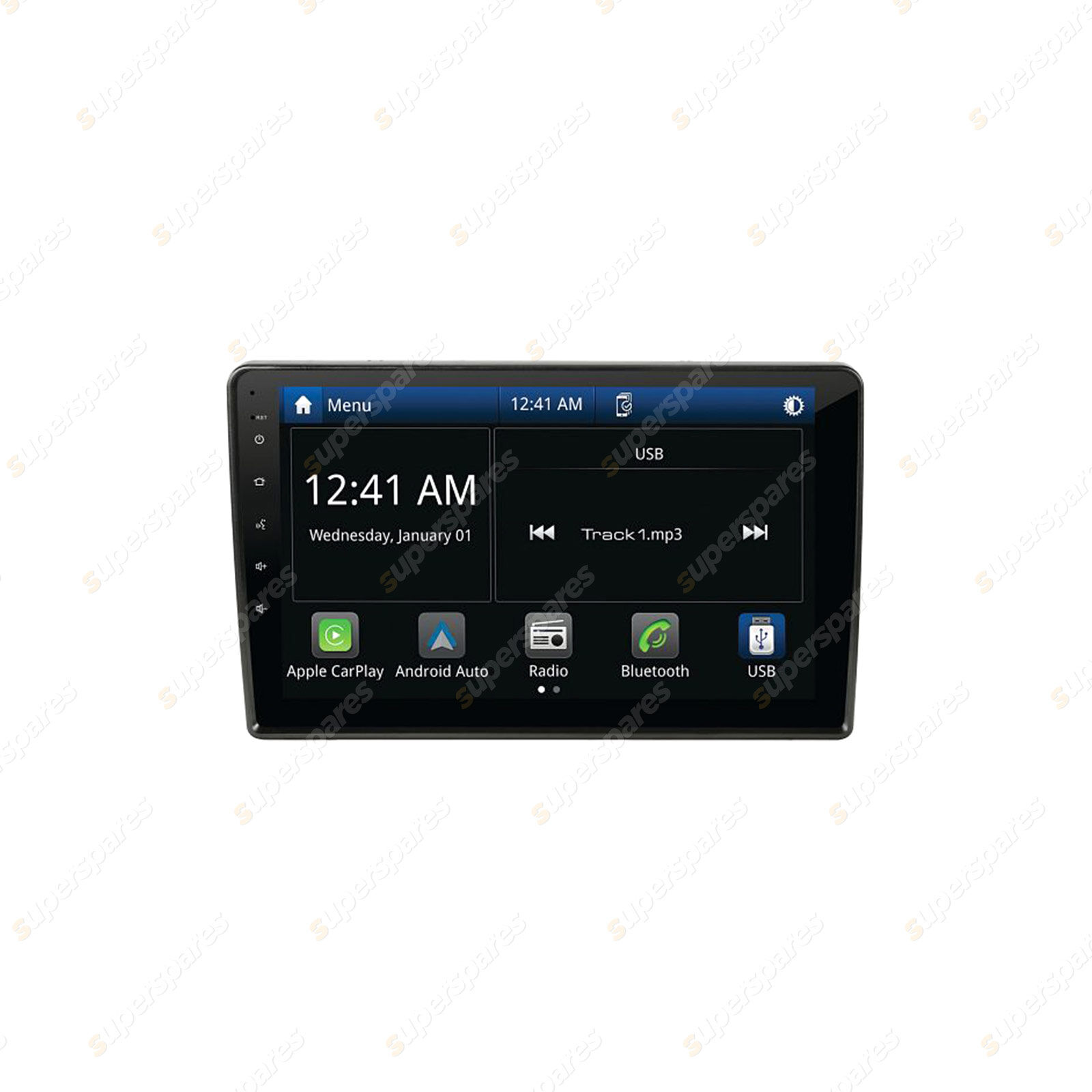

The Aerpro AMVW4 10" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Volkswagen Amarok (2016-on), Caddy (2015-2020), Multivan (2016-2019), Tiguan (2015-2016)* and Transporter (2016-2019) vehicles (with factory MIB-PQ unit). Featuring a large 10" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner. Sound quality is superb with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMVW4 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls.Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Only suits vehicles with MIB-PQ unit from factory.
(*) Due to the size of the head unit, please be aware in Tiguan (2015-2016) vehicles the kit partially covers hazard button.
Ignition Stabiliser may be required for stop-start models (Aerpro APIGNSTB, not included).
Camera retention adaptor required to retain factory camera (Aerpro APVVW03, not included).
May need to remove fuse from factory Bluetooth module for phone button to work.
This head unit is sold as a kit which includes:
AM10X Multimedia Receiver
Matte Black Facia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Antenna Adaptor
Features
- To suit Volkswagen Amarok (2016-on), Caddy (2015-2020), Multivan (2016-2019), Tiguan (2015-2016)* and Transporter (2016-2019) vehicles (with factory MIB-PQ unit)
-
Includes all the parts required to complete the installation
-
Apple CarPlay & Android Auto (wireless / wired)
-
Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
-
Large 10" capacitive touchscreen display
-
Steering wheel control retention
-
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
-
AM / FM Tuner with RDS & presets (18FM/12AM)
-
Rear USB input (1.5A max charging)
-
Reverse camera input (AHD 720P compatible) & rear A/V input
-
40Wx4 Max with 8 band graphic EQ and time alignment capabilities
-
4V/5CH RCA Preout and subwoofer level control
Specifications
AMVW4 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
Kit Inclusions:
AM10X Multimedia Receiver
Matte Black Facia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Antenna Adaptor
Vehicle Feature Retention:
Steering Wheel Controls: Yes
Factory Reverse Camera: Yes (Aerpro APVVW03 required, not included).
AUX Input: N/A
USB Input: N/A
Parking Tones: N/A
Factory Amplifier: No
Vehicle Menu: No
Other: N/A
AM10X MULTIMEDIA RECEIVER SPECIFICATIONS:
LCD Display:
Size: 10"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size:2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback:MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Only suits vehicles with MIB-PQ unit from factory.
(*) Due to the size of the head unit, please be aware in Tiguan (2015-2016) vehicles the kit partially covers hazard button.
Ignition Stabiliser may be required for stop-start models (Aerpro APIGNSTB, not included).
Camera retention adaptor required to retain factory camera (Aerpro APVVW03, not included).
May need to remove fuse from factory Bluetooth module for phone button to work.
