EFS Lift kit Shocks Leaf Spring for LANDCRUISER FZJ HZJ 75 Series CAB 80mm Lift

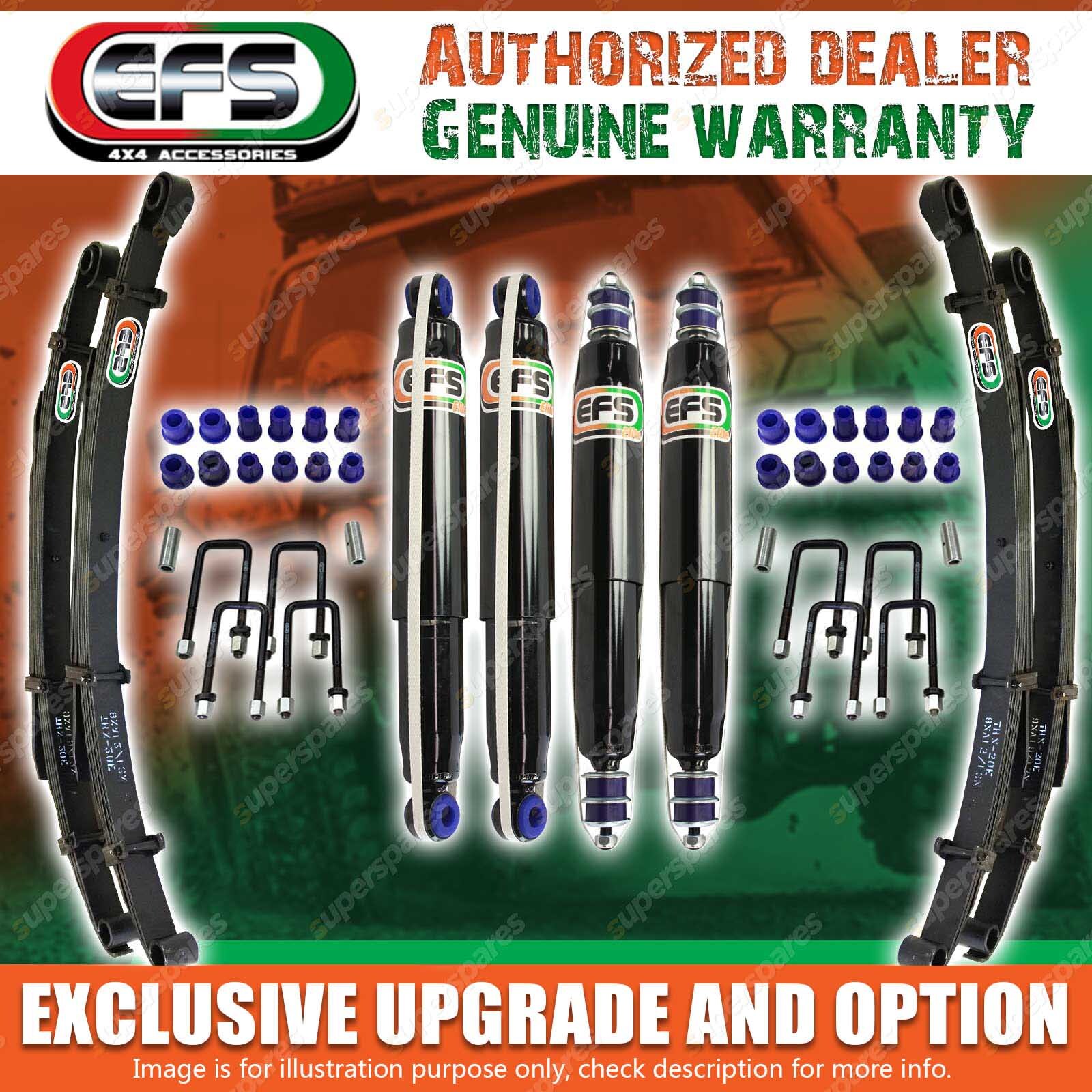

EFS 80mm SUSPENSION LIFT KIT CONTENTS:

TO SUIT:

TOYOTA LANDCRUISER FZJ75, HZJ75 - CAB CHASSIS 1990-ON

EFS Elite Shock Absorbers

EFS most popular selling 4WD shock absorber. Premium construction, super long warranty and suitable for many applications.

* 51mm - 60mm External Tube - Greater oil capacity to keep the valve at a lower operating temperature.
* Low Pressure Nitrogen Gas - Prevent the oil from cavitating (foaming)
* Long Travel Design - Maximises wheel articulation
* 35mm Piston, Twin Tube Construction - Increased control of the spring during rebound and compression cycles
* 16mm Quality Hardened Chromed Piston Rod Longer service life, and greater lateral strength
* 1.5mm Outer & Inner Wall Thickness Greater durability and strength
* Dynamic Motion Control Valve - Adjusts to different road & off road conditions
* Polyurethane and rubber bushes HI quality elastomer and rubber mounting bushes to suit specific applications
* EFS shock absorbers are vehicle & height specific with valving codes developed to suit each vehicle. "Not a one shock suits all approach".

EFS Leaf Springs

EFS Multi-Leaf Springs are made from high quality Japanese grade SUP9 & SUP9A Alloyed Carbon spring steel.

* Tapered Leaf Ends - To reduce the inter-leaf friction & to improve pressure distribution in the load bearing area.
* Bolt Clip Liners - To reduce noise & friction.
* Inter-Leaf Graphite Coating - For further reduction of friction.
* Shot Peened & Scragged Tested - To reduce stress & ensure longevity.
* Leaf Inserts Pads - For further reduction of friction.
* Bolt Clips & Military Wraps - To prevent leaf spread & provide safety.

EFS U-BOLTS

Powder coasted for protection against corrosion & made from quality carbon steels with rolled threads to increase strength, due to a uniform grain finish.Deep nuts are supplied for safety & strength with flat washers to provide a smooth contact surface area to reduce plate friction.EFS have a vast variety of U-bolts on offer for most Makes and Models of 4wd's. We also can custom bend U-Bolts to order.

EFS PINS & SHACKLES

Engineered to be stronger than the original equipment & greaseable for ease of service. The EFS Pins & shackles are made from medium & high grade carbon steels then case hardened & gold cadmium plated or black oxided for increased strength & corrosion protection EFS offers standard replacements and a small range of anti-inversion std and extended shackles.

* Engineered with increased strengthGreaseable for ease of maintenance
* Case hardened & gold cadmium plated
* Extended & standard anti-inversion shackles
* 3 year / 100, 000 km warranty

EFS POLYURETHANE BUSHES

EFS Polyurethane Bushes are made from high quality elastomers which gives the EFS Polyurethane Bush a high isolating strength & durable.

EFS poly bushes have an elastomer rating of 80 Duro to give improved suppleness & grease channels for increased distribution of lubrication.properties.

Enforcer 31mm Bore

A no fuss application to get the job done. Great for the occasional 4WDer with great performance at a great price.

Elite 35mm Bore

The EFS Elite Shock Absorber Range has been developed for the 4wd owner who only pursues the best for his/her 4WD.

XTR 40mm Bore

The EFS XTR Shock Absorber Range is developed specifically for the Outback Offroad Tourers with heavily laden 4WDs. Improved with increased oil capacities to reduce operating temps and incorporating a highly robust construction to take on the Australian Outback

X-Treme 45mm Bore

The EFS X-Treme Shock Absorber has taken over three yrs to develop and test. During this period its had countless trips along unsealed corrugated roads, highly strenuous technical offroad situations & has seen many laps of 4WD race tracks in comp vehicles. The X-Treme has exceeded our expectations and has been pushed beyond the boundaries a normal 4WD shock absorber can endure.
