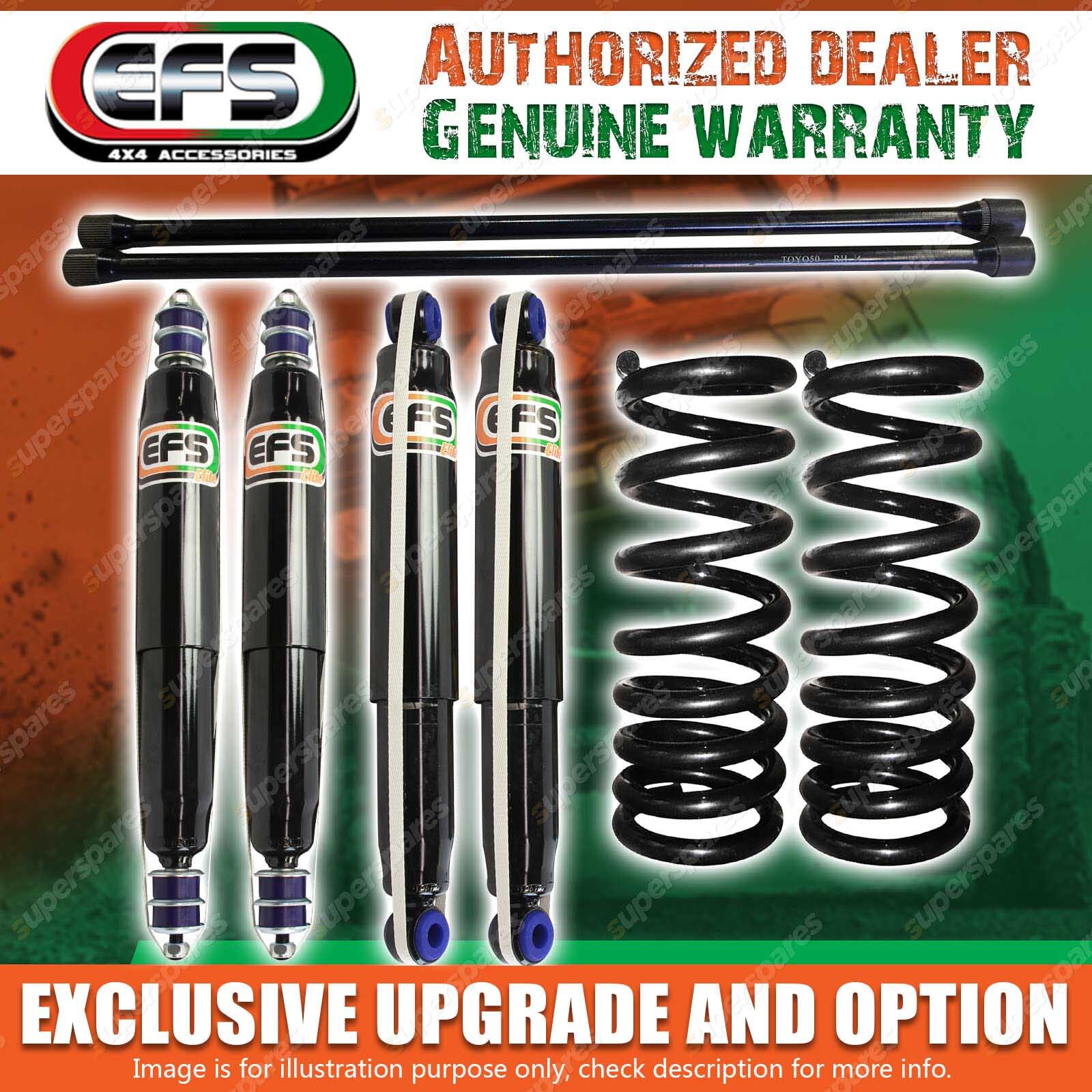

EFS Elite 50mm Lift kit Torsion Bar + Coil for LANDCRUISER HZJ HDJ 100 Series

EFS 50mm SUSPENSION LIFT KIT CONTENTS:

TO SUIT:

TOYOTA LANDCRUISER IFS - HZJ100 HDJ100 DIESEL T/DIESEL 2000-2007

EFS Elite Shock Absorbers

EFS most popular selling 4WD shock absorber. Premium construction, super long warranty and suitable for many applications.

* 51mm - 60mm External Tube - Greater oil capacity to keep the valve at a lower operating temperature.
* Low Pressure Nitrogen Gas - Prevent the oil from cavitating (foaming)
* Long Travel Design - Maximises wheel articulation
* 35mm Piston, Twin Tube Construction - Increased control of the spring during rebound and compression cycles
* 16mm Quality Hardened Chromed Piston Rod Longer service life, and greater lateral strength
* 1.5mm Outer & Inner Wall Thickness Greater durability and strength
* Dynamic Motion Control Valve - Adjusts to different road & off road conditions
* Polyurethane and rubber bushes HI quality elastomer and rubber mounting bushes to suit specific applications
* EFS shock absorbers are vehicle & height specific with valving codes developed to suit each vehicle. "Not a one shock suits all approach".

EFS Coil Springs

EFS Coil Springs are produced in a variety of raised heights, from standard to 125mm & also a variety of spring rates to suit different applications - towing, load bearing, ride height & competition.

* Shot Peened - To stress relieve the outer surface of the Coil, so the Coil can operate under higher fatigue & repeated load conditions to ensure longevity.

* Scragged for Quality Control -This is a process where the Coil is compressed beyond its yield point; this compression will set-up residual stresses and increase the elastic limit of the spring.

* Powder Coated - To resist corrosion & to protect the spring steel from minor damage.

EFS Torsion Bar

The EFS Torsion Bar is increased in strength by 25% to 30% over the standard O.E Bar. Just as Coil Springs & Leaf Springs fatigue & sag so do Torsion Bars. The EFS Torsion Bar will provide you with increased handling & response from your vehicle & compensate for extra loads.

* Pre Stressed - To ensure longevity & durability
* Increased in Spring rate - To compensate for load bearing accessories
* Made from High Carbon Alloy Steel (XK-5160)
* Bars Feature - Machined Splines, Bar Peeled & Rolled to ensure strength & reliability

Note: The ends of all EFS Torsion Bars are painted with a colour code, when fitting these Bars the following applies.
Green to front of vehicle, Blue to left & Red to right.

Enforcer 31mm Bore

A no fuss application to get the job done. Great for the occasional 4WDer with great performance at a great price.

Elite 35mm Bore

The EFS Elite Shock Absorber Range has been developed for the 4wd owner who only pursues the best for his/her 4WD.

XTR 40mm Bore

The EFS XTR Shock Absorber Range is developed specifically for the Outback Offroad Tourers with heavily laden 4WDs. Improved with increased oil capacities to reduce operating temps and incorporating a highly robust construction to take on the Australian Outback

X-Treme 45mm Bore

The EFS X-Treme Shock Absorber has taken over three yrs to develop and test. During this period its had countless trips along unsealed corrugated roads, highly strenuous technical offroad situations & has seen many laps of 4WD race tracks in comp vehicles. The X-Treme has exceeded our expectations and has been pushed beyond the boundaries a normal 4WD shock absorber can endure.
