Bull Bar 4X4FORCE bull bars help protect your vehicle from animal strikes when driving on remote roads,and provide convenient locations to mount other 4x4 accessories such as winches,lights and aerials. 4X4FORCE bull bar is carefully crafted from premium grade materials and components to deliver the most comprehensive frontal protection and styling available. Each 4X4FORCE bull bar is specifically designed to complement the unique contours of individual vehicle models.This ensures the best possible fit,look and functionality for a particular vehicle.All 4X4FORCE bars are finished in a durable powder coat. |
|
|
Features :
|
| |
|
Drive Light 4X4FORCE LED Light is Your Wise Choice. Using a special design of the LED constant current source power supply circuit,the performance is very stable,long life,50,000 hours, the protection of the environment,you can enjoy using it. Each light has using OSRAM P8 chip,and it is durable,low power consumption.Safe to use. | |
Features :
|
|
4WD Recovery Winch Kit WINCH'S CLASSIFICATION AND FEATURES |
13500LB WINCH SPECIFICATIONS | |
| Rated Line Pull | 13500LBS(6123kgs) single line |
| Motor | 5.3kw/7.2hp, series wound |
| Control | Remote switch, 9.8ft(3m)lead |
| Gear train | 3 Stage Planetary |
| Gear train ratio | 265:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Automatic In-The-Drum |
| Drum Size | Φ2.5"(64)mm x 8.8"(223.5)mm |
| Cable | Φ9.3mm x 26m |
| Overall Dimensions | 19.8"x6.3"x8.5"(529mm x 160mm x 217mm) |
| Mounting Bolt Pattern | 255mm x 114mm Φ 11 |
| Weight | N.W.25kg G.W.26Kg |
| Packing Size | 615 x 355 x 265mm |
|
PULL. SPEED. AMPERES. VOLTS | ||
| Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
| 0 | 24.9(7.6) | 70 |
| 1500(680) | 17.1(5.2) | 160 |
| 3500(1588) | 11.5(3.5) | 220 |
| 5500(2495) | 9.2(2.8) | 260 |
| 7500(3402) | 7.9(2.4) | 310 |
| 13500(6123) | 6.2(1.9) | 380 |
|
LINE PULL AND ROPE CAPACITY IN LAYER | ||
| Layer | Rated Line Pull lbs(kgs) | Total Rope on Drum ft(m) |
| 1 | 13500(6123) | 13(5) |
| 2 | 10200(4636) | 23(11) |
| 3 | 8705(3956) | 69(21) |
| 4 | 7310(3323) | 92(28) |
Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.
Copyright © 2014 - 2024 Spareszone. All rights reserved.

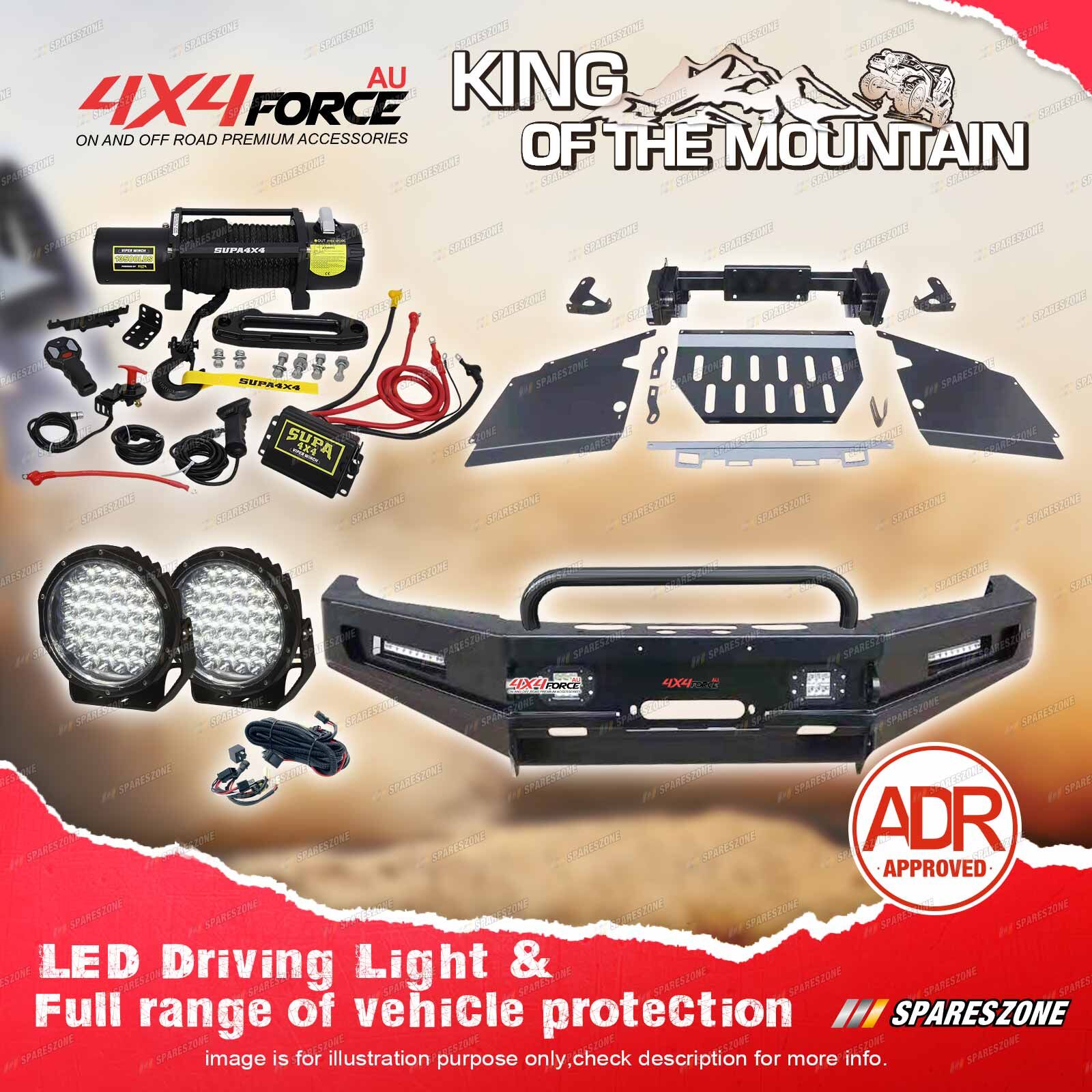

Contents: 1 Set 4X4FORCE Front Rock Hard Bumper Winch Bullbar U Loop Guard Plate Pair 4X4FORCE 9 inch Round Drive light Osram lamp beads 4X4FORCE Electricity 4WD Recovery Winch Kit |
Bull Bar Specifics: Style: With U LoopMaterial: Heavy Duty Steel ; Powder Coated Guard Plate QTY: 3 | Lights Parameter : Size : 9 inchLeds: 32 Wattage: 160W Effect Lumens: 16750LM |
Suits:Toyota Hilux Vigo 2012-2015 |
