EFS Lift kit Torsion Bar + Leaf Springs for HOLDEN JACKAROO LWB 45mm Lift

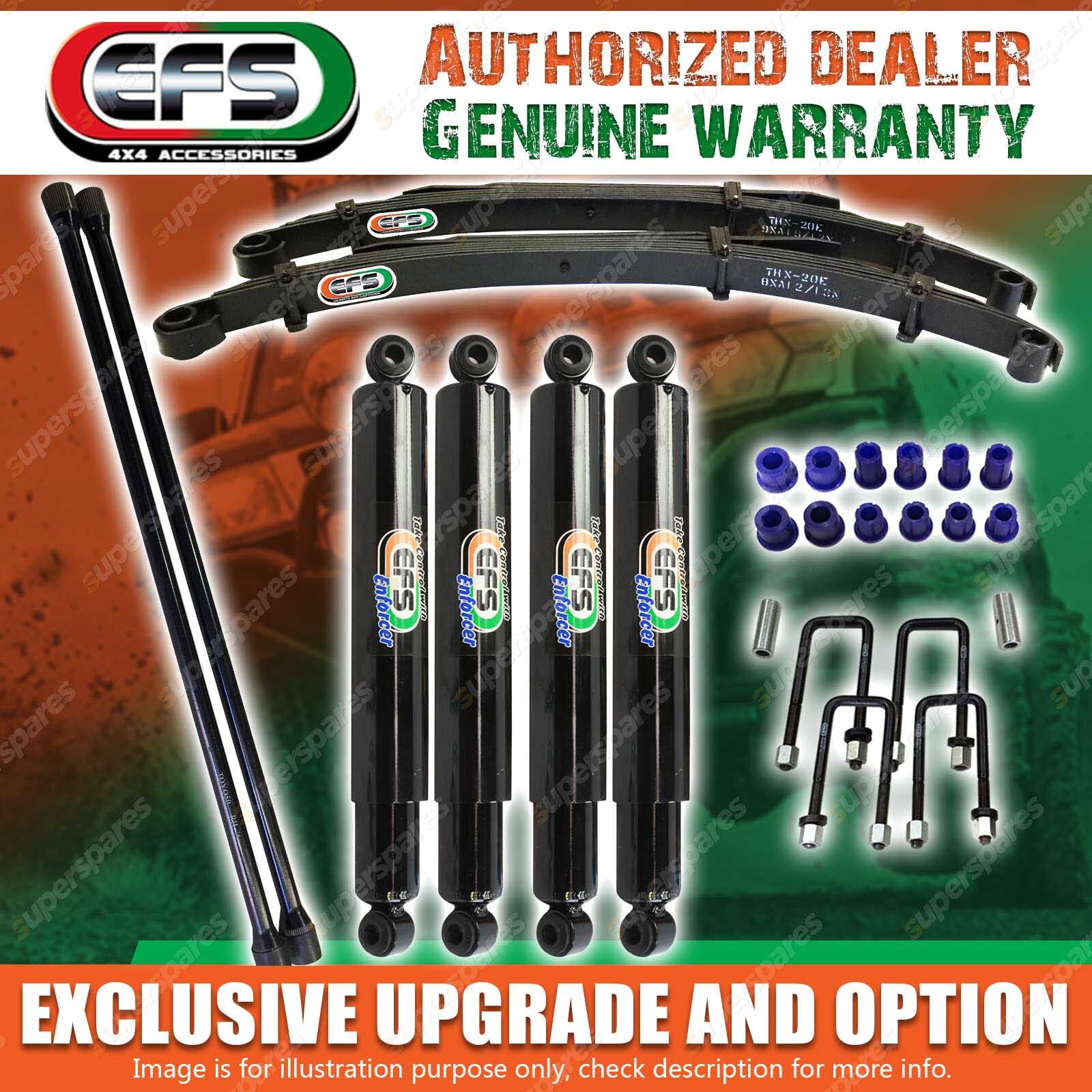

EFS 45mm SUSPENSION LIFT KIT CONTENTS:

TO SUIT:

HOLDEN JACKAROO LWB 4WD IFS WITH LEAF SPRING REAR 1983 TO 4/1992

EFS Enforcer Shock Absorbers

A no fuss application to get the job done. Great for the occasional 4WDer with great performance at a great price.

* Low Pressure Nitrogen Gas -To prevent the oil from cavitation (foaming)
* Long Travel Design -To maximise wheel travel when a vehicle is raised and increase articulation
* 32mm Piston, Twin Tube Construction - Greater control of the spring during the rebound and compression cycles
* 15mm Quality Hardened Chromed Piston Rod -Increased durability
* 1.2mm Outer and Inner Wall Thickness -For greater durability and strength
* Dynamic Motion Control Technology - Adjusts to different road and off road conditions
* High Quality Internal & External Components - To prevent fade under harsh conditions and long life poly bushes for durability.

EFS Torsion Bar

The EFS Torsion Bar is increased in strength by 25% to 30% over the standard O.E Bar. Just as Coil Springs & Leaf Springs fatigue & sag so do Torsion Bars. The EFS Torsion Bar will provide you with increased handling & response from your vehicle & compensate for extra loads.

* Pre Stressed - To ensure longevity & durability
* Increased in Spring rate - To compensate for load bearing accessories
* Made from High Carbon Alloy Steel (XK-5160)
* Bars Feature - Machined Splines, Bar Peeled & Rolled to ensure strength & reliability

Note: The ends of all EFS Torsion Bars are painted with a colour code, when fitting these Bars the following applies.
Green to front of vehicle, Blue to left & Red to right.

EFS Leaf Springs

EFS Multi-Leaf Springs are made from high quality Japanese grade SUP9 & SUP9A Alloyed Carbon spring steel.

* Tapered Leaf Ends - To reduce the inter-leaf friction & to improve pressure distribution in the load bearing area.
* Bolt Clip Liners - To reduce noise & friction.
* Inter-Leaf Graphite Coating - For further reduction of friction.
* Shot Peened & Scragged Tested - To reduce stress & ensure longevity.
* Leaf Inserts Pads - For further reduction of friction.
* Bolt Clips & Military Wraps - To prevent leaf spread & provide safety.

EFS U-BOLTS

Powder coasted for protection against corrosion & made from quality carbon steels with rolled threads to increase strength, due to a uniform grain finish.Deep nuts are supplied for safety & strength with flat washers to provide a smooth contact surface area to reduce plate friction.EFS have a vast variety of U-bolts on offer for most Makes and Models of 4wd's. We also can custom bend U-Bolts to order.

EFS PINS & SHACKLES

Engineered to be stronger than the original equipment & greaseable for ease of service. The EFS Pins & shackles are made from medium & high grade carbon steels then case hardened & gold cadmium plated or black oxided for increased strength & corrosion protection EFS offers standard replacements and a small range of anti-inversion std and extended shackles.

* Engineered with increased strengthGreaseable for ease of maintenance
* Case hardened & gold cadmium plated
* Extended & standard anti-inversion shackles
* 3 year / 100, 000 km warranty

EFS POLYURETHANE BUSHES

EFS Polyurethane Bushes are made from high quality elastomers which gives the EFS Polyurethane Bush a high isolating strength & durable.

EFS poly bushes have an elastomer rating of 80 Duro to give improved suppleness & grease channels for increased distribution of lubrication.properties.
