Contents :

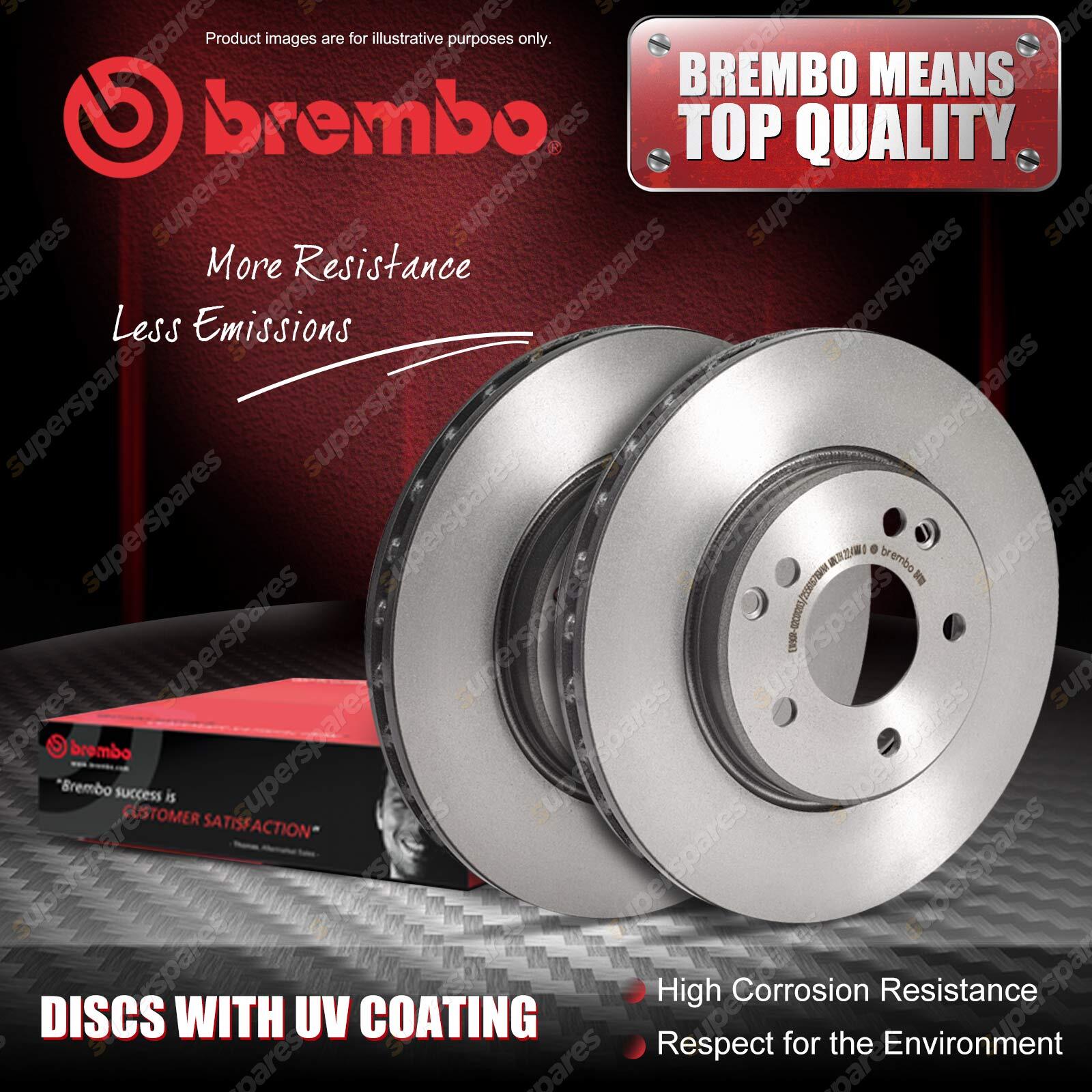

2 x Rear Brembo UV Coated Disc Brake Rotors
Technical Specifications:UV Coating & High Carbon & PVT Vented Disc
Disc Technical Data :
Disc Diameter [mm] : 303
Overall Height [mm] : 93
Centring Diameter [mm] : 120
Number of Holes : 6
Thickness [mm] : 28
Minimum Thickness [mm] : 25
Tightening Torque [Nm] : 175
Suit Vehicle:
Make | Model | Type | KW / CV | Year | Information |
---|---|---|---|---|---|
Mercedes Benz | Sprinter 4,6-t Box (906) | 411 CDI;413 CDI;415 CDI;416 CDI;418 CDI;419 CDI (906.653,906.655,906.657) | 80KW/109CV;95KW/129CV;110KW/150CV;120KW/163CV;135KW/184CV;140KW/190CV | 06/2006 - On | Vented Disc |
Mercedes Benz | Sprinter 4,6-t Box (906) | 414 CDI | 105KW/143CV | 05/2016 - On | Vented Disc |
Mercedes Benz | Sprinter 4,6-t Box (906) | 424 (906.655,906.657,906.653) | 190KW/258CV | 06/2006 - 12/2013 | Vented Disc |
Mercedes Benz | Sprinter 4,6-t Platform/Chassis (906) | 411 CDI;415 CDI;416 CDI;418 CDI;419 CDI;424 (906.153,906.155,906.253,906.255) | 80KW/109CV;110KW/150CV;120KW/163CV;135KW/184CV;140KW/190CV;190KW/258CV | 06/2006 - On | Vented Disc |
Mercedes Benz | Sprinter 4,6-t Platform/Chassis (906) | 414 CDI | 105KW/143CV | 05/2016 - On | Vented Disc |
Mercedes Benz | Sprinter 5-t Box (906) | 509 CDI;510 CDI;511 CDI;511 CDI 4x4;513 CDI;513 CDI 4x4;515 CDI;515 CDI 4x4;516 CDI;516 CDI 4x4;518 CDI;518 CDI 4x4;519 CDI / BlueTEC;519 CDI / BlueTEC 4x4;524 (906.653,906.655,906.657) | 65KW/88CV;70KW/95CV;80KW/109CV;95KW/129CV;110KW/150CV;120KW/163CV;135KW/184CV;140KW/190CV;190KW/258CV | 06/2006 - On | Vented Disc |
Mercedes Benz | Sprinter 5-t Box (906) | 511 CDI;514 CDI;514 CDI 4x4 (906.653,906.655,906.657) | 84KW/114CV;105KW/143CV | 05/2016 - On | |
Mercedes Benz | Sprinter 5-t Bus (906) | 513 CDI (906.653,906.655,906.657) | 95KW/129CV | 06/2006 - On | Vented Disc |
Mercedes Benz | Sprinter 5-t Bus (906) | 516 CDI;519 CDI / BlueTEC | 120KW/163CV;140KW/190CV | 03/2009 - On | Vented Disc |
Mercedes Benz | Sprinter 5-t Platform/Chassis (906) | 509 CDI;510 CDI;511 CDI;515 CDI;515 CDI 4x4;516;516 CDI;516 NGT;518 CDI;518 CDI 4x4;519 CDI / BlueTEC;524 (906.153,906.155,906.253,906.255) | 65KW/88CV;70KW/95CV;80KW/109CV;110KW/150CV;115KW/156CV;120KW/163CV;135KW/184CV;140KW/190CV;190KW/258CV | 06/2006 - On | Vented Disc |
Mercedes Benz | Sprinter 5-t Platform/Chassis (906) | 511 CDI;514 CDI;514 CDI 4x4 (906.153,906.155,906.253,906.255) | 84KW/114CV;105KW/143CV | 05/2016 - On | |
Mercedes Benz | Sprinter 5-t Platform/Chassis (906) | 511 CDI 4x4;513 CDI;513 CDI 4x4 (906.155,906.253,906.255) | 80KW/109CV;95KW/129CV | 06/2006 - 05/2016 | Vented Disc |
Mercedes Benz | Sprinter 5-t Platform/Chassis (906) | 516 CDI 4x4 (906.153,906.155,906.255) | 120KW/163CV | 05/2011 - On | Vented Disc |
Mercedes Benz | Sprinter 5-t Platform/Chassis (906) | 519 CDI / BlueTEC 4x4 (906.153,906.155,906.253,...) | 140KW/190CV | 03/2009 - On | Vented Disc |
R&D, laboratory and road testing, production and distribution: the control over the entire production cycle allows Brembo to offer a brake disc range with excellent performance, reliability, durability, and comfort in all conditions. |
|
98% CAR PARK COVERAGE IN EU MARKET PRODUCTS WITH OE QUALITY THE WHOLE RANGE CERTIFIED |
The low environmental impact and the excellent resistance to corrosion allow the range of brake discs with UV coating to establish a new benchmark for the protective treatment. Moreover, the exclusive metal finish offers an appealing aesthetic impact. |
ENVIRONMENT FRIENDLY |

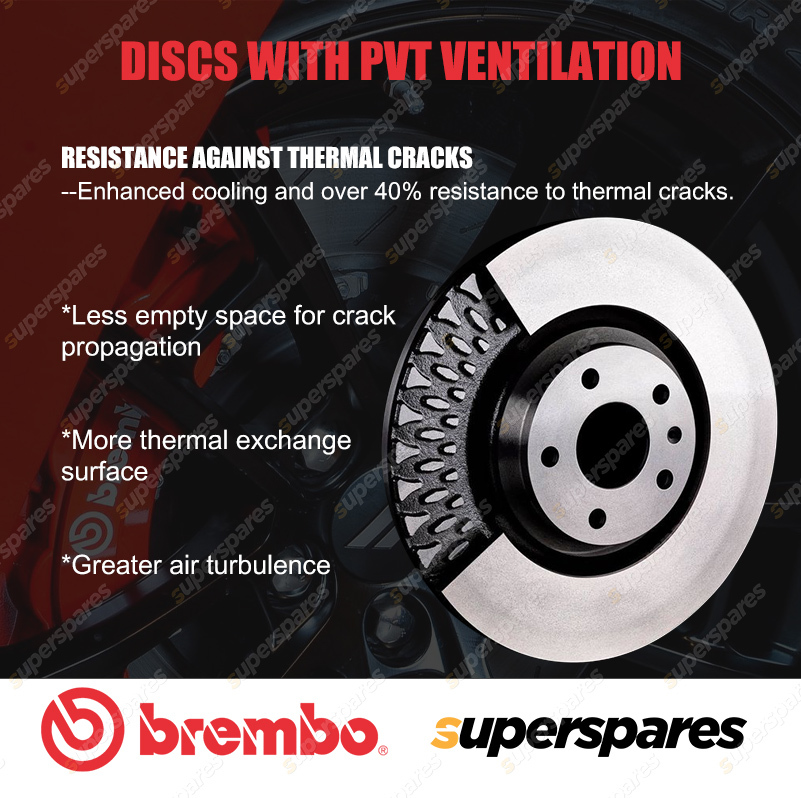

The Brembo patent for PVT discs changes market habits, using pillars instead of vanes in the ventilation chamber. The system improves cooling capacity and increases resistance to thermal cracks by more than 40%. The most significant innovations are: |
|
LESS EMPTY SPACE FOR CRACK PROPAGATION MORE THERMAL EXCHANGE SURFACE GREATER AIR TURBULENCE |
Perfect result of Brembo's philosophy of offering also to the Aftermarket a range of products developed with the same parameters as the Original Equipment, the High Carbon (HC) brake discs offer comfort and reduced noise thanks to the high damping coefficient. The result comes from Brembo technology and complete control over production in its plants, which allows for variation of the chemical composition of the cast iron by increasing the percentage of carbon. |
![]() |
|
Brembo is a world leader in the design, |
