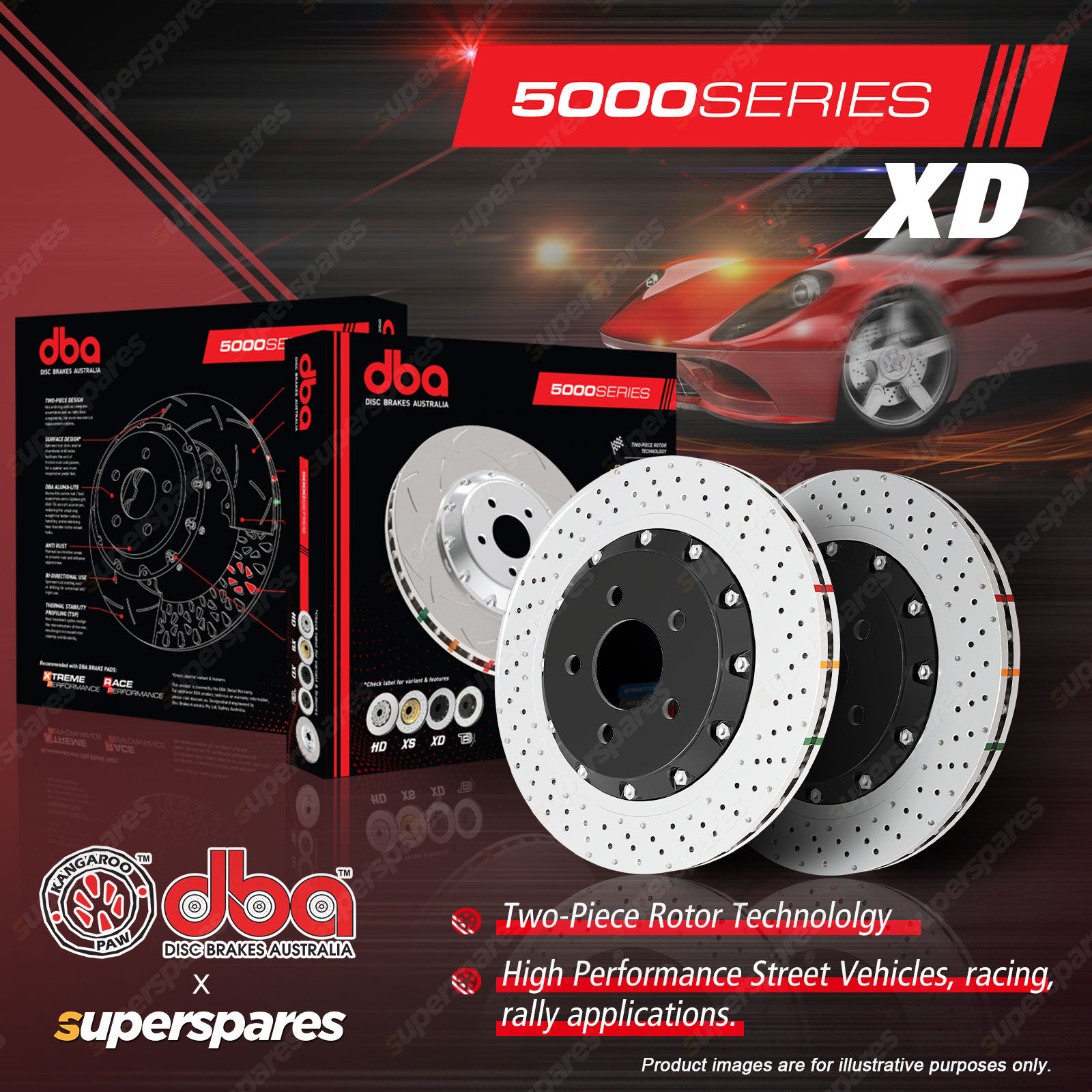

Contents : 2x DBA 5000 Series Crossed Drilled & Dimpled Fully Assembled 2-Piece Assy Black Hat Disc Rotors
Position : Front
Rotors Dimension :
Diameter [mm]:390
Original Height [mm]:54
Original Thickness [mm]:35.6
Minimum Thickness [mm]:33.6
Centre Hole Diameter [mm]:67.4
Number of Bolt Holes:5
Suit Vehicle:
Vehicle Make | Model | Model Series | Year Range |
---|---|---|---|
HSV | HSV ¨C GTS | VE & VF GTS YELLOW CALIPER | 08/2006-2015 |
Sharing all the benefits of the 4000 Series, 5000 Series rotors are a composite 2 piece direct replacement brake rotor. DBA use only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high-carbon cast iron rings with aerospace grade aluminium hats (T6061-T6) held together with National Aerospace Standards (NAS) bolts and crimp nuts. 5000 Series shares all of the performance technology featured in the 4000 Series, with the added benefits of further weight reduction and improved heat management via the aluminium hats. The use of aerospace grade aluminium hats reduces the unsprung weight of the brake rotors, whilst allowing for uniform radial disc expansion throughout the cast iron rings and reduced heat transfer from disc to hub via the aluminium hats. DBA offer both complete assemblies for first-time replacement (i.e. hats and rotor rings bolted together) along with replacement hats and rings. This allows drivers to re-use either component as required. |
![]() |
TWO-PIECE DESIGN - 1 SURFACE DESIGN - 2 DBA ALUMA-LITE - 3 |
HIGH CARBON ALLOYED IRON - 10 KANGAROO PAW - 11 NAS BOLTS & NUTS - 12 |
ANTI RUST - 4 BI-DIRECTIONAL USE - 5 THERMAL STABILITY PROFILING - 6 THERMAL EFFICIENCY - 7 CBN - 8 THERMOGRAPHIC HEAT PAINT - 9 *Some variants may not contain all features. |
![]() |
5000 Series XD features non directional cross-drilled and dimpled design. The XD finish provides cooling benefits above the HD finish along with enhanced sports aesthetics. XD utilises a mix of dimples and drilled holes to provide enhanced structural support above transitional cross-drilled designs. DBA don't recommend XD rotors for track use. |
![]() |
5000 Series direct replacement rotors are available as complete assemblies (hat and rings bolted together for direct replacement), or as replacement parts (hats or rings). This allows drivers that own DBA 5000 Series rotors the option to replace only the cast iron rotor rings, while keeping their previously used aluminium hats. This is not only cost effective for those that are hard on brakes, but it allows for easy replacement of DBA hats or rings. DBA recommend that aluminium hats should always be thoroughly inspected for damage and wear when only replacing the 5000 Series rings, along with the use of DBA spec bolts and nuts. DBA recommend 13 Nm or 9.6 ft lb of torque when tightening the NAS nut and bolt assembly. |
