Brand : DBA
Contents :

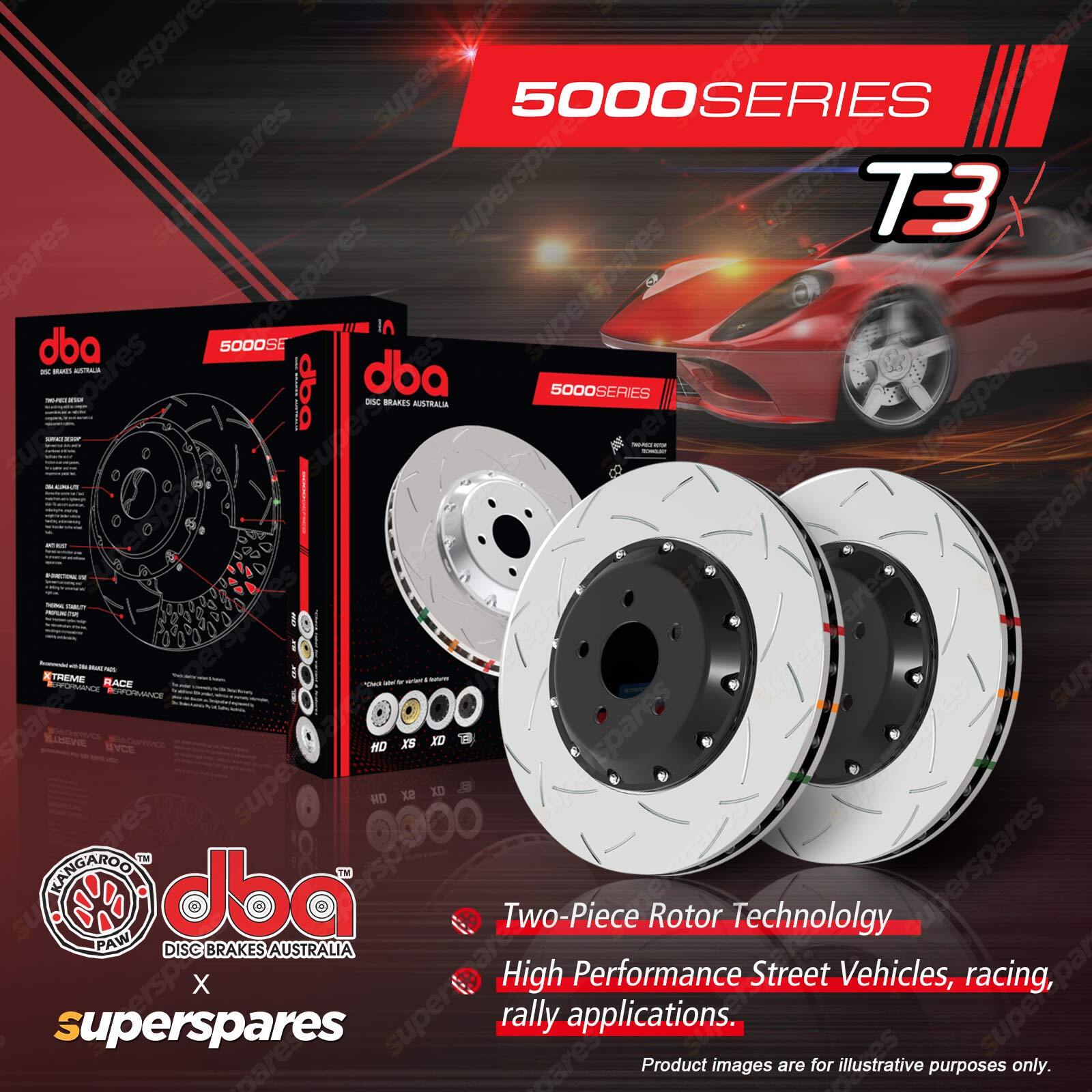

2x 5000 Series T3 2-Piece Black Hat Slotted Disc Brake Rotors
Position : Front
Rotors Type : Vented
Dimension :
Thickness [mm] : 32
Centering Diameter [mm] : 68
Height [mm] : 49.5
Minimum Thickness [mm] : 30
Number of Holes : 5
Outer Diameter [mm] : 354.6
Pitch Circle Diameter [mm] : 114.3
Suit Vehicle:
Make | Model Series | Engine Series | Body | Year |
---|---|---|---|---|
Infiniti | FX | 30d AWD 175kW | SUV | 04/2010-On |
Infiniti | FX | 37 AWD 235kW | SUV | 10/2008-On |
Infiniti | FX | 50 AWD 287kW | SUV | 10/2008-On |
Infiniti | G | 37 235kW | Convertible | 09/2010-On |
Infiniti | M (Y51) | 30d 175kW | Sedan | 03/2010-On |
Infiniti | M (Y51) | 37 235kW | Sedan | 03/2010-On |
Infiniti | Q60 | 3.7 235kW | Convertible | 10/2013-On |
Infiniti | Q70 (Y51) | 3.0 175kW | Sedan | 03/2013-On |
Infiniti | Q70 (Y51) | 3.7 235kW | Sedan | 03/2013-On |
Infiniti | QX70 Wagon | 3.7 AWD 235kW | SUV | 08/2013-On |
Infiniti | QX70 Wagon | 30d AWD 175kW | SUV | 08/2013-On |
Sharing all the benefits of the 4000 Series, 5000 Series rotors are a composite 2 piece direct replacement brake rotor. DBA use only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high-carbon cast iron rings with aerospace grade aluminium hats (T6061-T6) held together with National Aerospace Standards (NAS) bolts and crimp nuts. 5000 Series shares all of the performance technology featured in the 4000 Series, with the added benefits of further weight reduction and improved heat management via the aluminium hats. The use of aerospace grade aluminium hats reduces the unsprung weight of the brake rotors, whilst allowing for uniform radial disc expansion throughout the cast iron rings and reduced heat transfer from disc to hub via the aluminium hats. DBA offer both complete assemblies for first-time replacement (i.e. hats and rotor rings bolted together) along with replacement hats and rings. This allows drivers to re-use either component as required. |
![]() |
TWO-PIECE DESIGN - 1 SURFACE DESIGN - 2 DBA ALUMA-LITE - 3 |

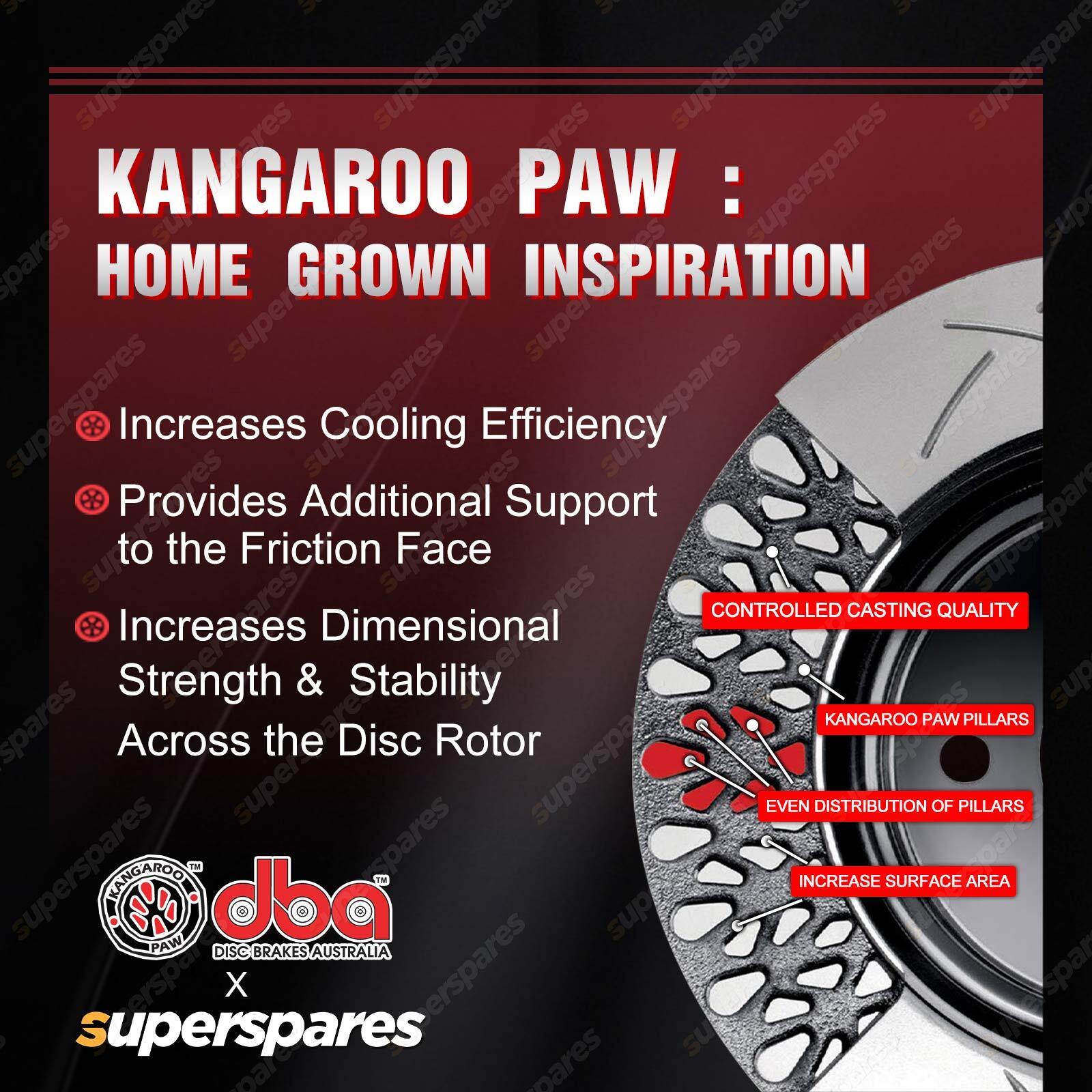

HIGH CARBON ALLOYED IRON - 10 KANGAROO PAW - 11 NAS BOLTS & NUTS - 12 |
ANTI RUST - 4 BI-DIRECTIONAL USE - 5 THERMAL STABILITY PROFILING - 6 THERMAL EFFICIENCY - 7 CBN - 8 THERMOGRAPHIC HEAT PAINT - 9 *Some variants may not contain all features. |
![]() |
5000 Series T3 is the ultimate in direct replacement 2 piece performance brake rotors, featuring all the benefits of the 5000 Series along with DBA's patented world renowned T3 bi-directional slot design. Built on the foundations of DBA's T2 slot, the T3 slot design features additional precise CNC machined tri-symmetrical slots, resulting in an even quieter, more responsive and smoother braking experience. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further enhancing the consistency and effectiveness of every brake stop. DBA recommends a T3 slot for high-performance applications. |
![]() |
5000 Series direct replacement rotors are available as complete assemblies (hat and rings bolted together for direct replacement), or as replacement parts (hats or rings). This allows drivers that own DBA 5000 Series rotors the option to replace only the cast iron rotor rings, while keeping their previously used aluminium hats. This is not only cost effective for those that are hard on brakes, but it allows for easy replacement of DBA hats or rings. DBA recommend that aluminium hats should always be thoroughly inspected for damage and wear when only replacing the 5000 Series rings, along with the use of DBA spec bolts and nuts. DBA recommend 13 Nm or 9.6 ft lb of torque when tightening the NAS nut and bolt assembly. |
