3"75mm Easy Lift Kit EFS Complete Strut for Toyota Hilux KUN25 KUN26 2005-On

TOYOTA HILUX / VIGO GGN, KUN25 / GGN, KUN26 2005 on

(*please advise year model, so we can make sure send you the right parts)

Easy Installation

Level your front and rear suspension

Give you much smoother ride,as the shackles are able to move with the leaf springs giving a much more linear stress reduced suspension action.

Give your vehicle an easylift & fix that "nose dive" appearance by matching a pair of front coil strut spacers with rear extended shackles. the 25mm front coil spacers will give you approx 37mm of lift and the 50mm rear extended shackles will give approx 25-30mm, so you can slightly raise the vehicle, increase rear articulation and decrease the nose dive appearance.

Specifications:

EFS Complete Strut Assembly is completely assembled and ready for installation. You no longer need to assemble components and there are no specialized tools required! It is manufactured from high quality materials at very affordable price.

* EFS Complete Strut include all the high quality components required for strut replacement in a single, fully-assembled unit.
* Each assembly is 100% fit and ride tested on the corresponding application
* Helps restore factory ride height and original vehicle ride performance.

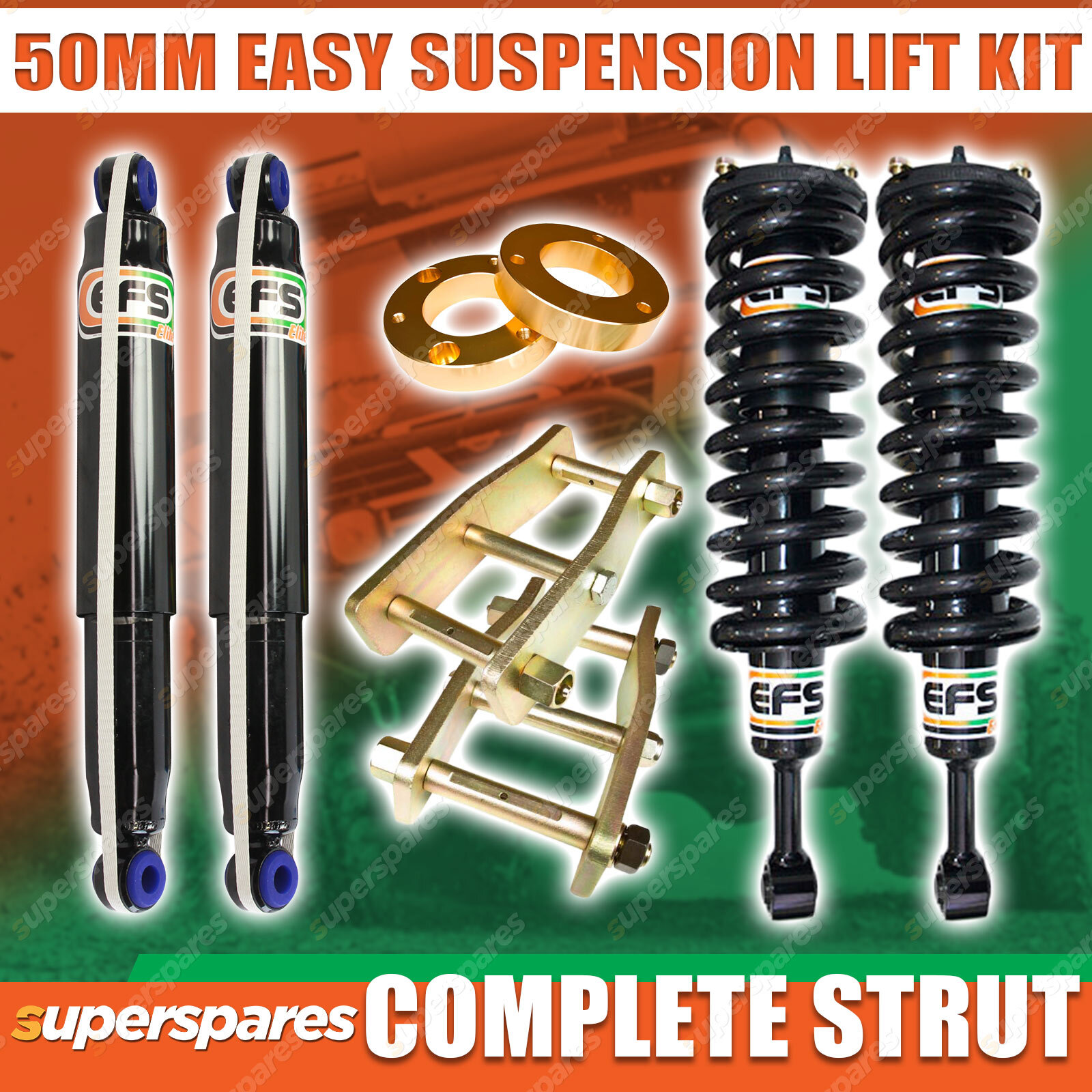

* Complete Strut Assembly includes: EFS Strut, EFS Strut Top Mount, EFS Strut Top Spacer, EFS Heavy Duty Coil Spring.
* Direct Fit - Ready to Install - No Special Tools Required

Installation of Coil Strut Spacers is the ideal way of generating lift on vehicles with strut front ends. Coil Strut Spacers bolt to the top of the strut, and maintain full articulation of the front end. You can lift the front end to even out the nose dive appearance whilst still employing stock suspension. Coil Strut Spacer kits include a pair of coil strut spacers plus fitting hardware(studs, nuts etc.) The Strut Spacers are designed for vehicles running standard coil springs in the front. If your vehicle is fitted with a winch, bull bar etc., which is weighing the front end down,then a strut/spring upgrade is required.

If you are after more flex in your vehicles rear end, then Extended Shackles are an easy way to achieve it.Basically the extended shackle creates a greater sweeping arc of the shackle which in turn provides for more wheel travel and a nicer ride.Extended Shackles are engineered to the highest standard, with factory size Greasable Pins (to allow installation of factory bushings) and 50mm extended plates.All extended shackles incorporate a stepped bolt design, ensuring that the shackles cannot be overtightened, resulting in deformation of the bushings.
Extended shackles incorporate a great design feature to protect the grease nipple against damage from rocks and debris that could be encountered in the installed position. Giving 50mm more length than the factory shackle you will also see a lift of between approx. 25-30mm (Depending upon application). Sold in Pairs.

It is recommended to fit a 3 degree wedge to the front when using Extended Shackles.
