1x Sachs Monotube Steering Damper for Mercedes Benz C-Class W201 W202 W124 Sedan

In gas-filled monotube dampers, the working cylinder is filled with oil and gas at a high pressure of around 25 to 30 bar. The floating separating piston provides absolutely leak-proof separation between the oil and the gas.

The SACHS monotube damper can be installed in any position. It operates at higher pressure than the twin-tube damper. The advantages of this are that it makes the lamellar valves in the piston highly responsive and also prevents foaming or bubble formation in the hydraulic oil.

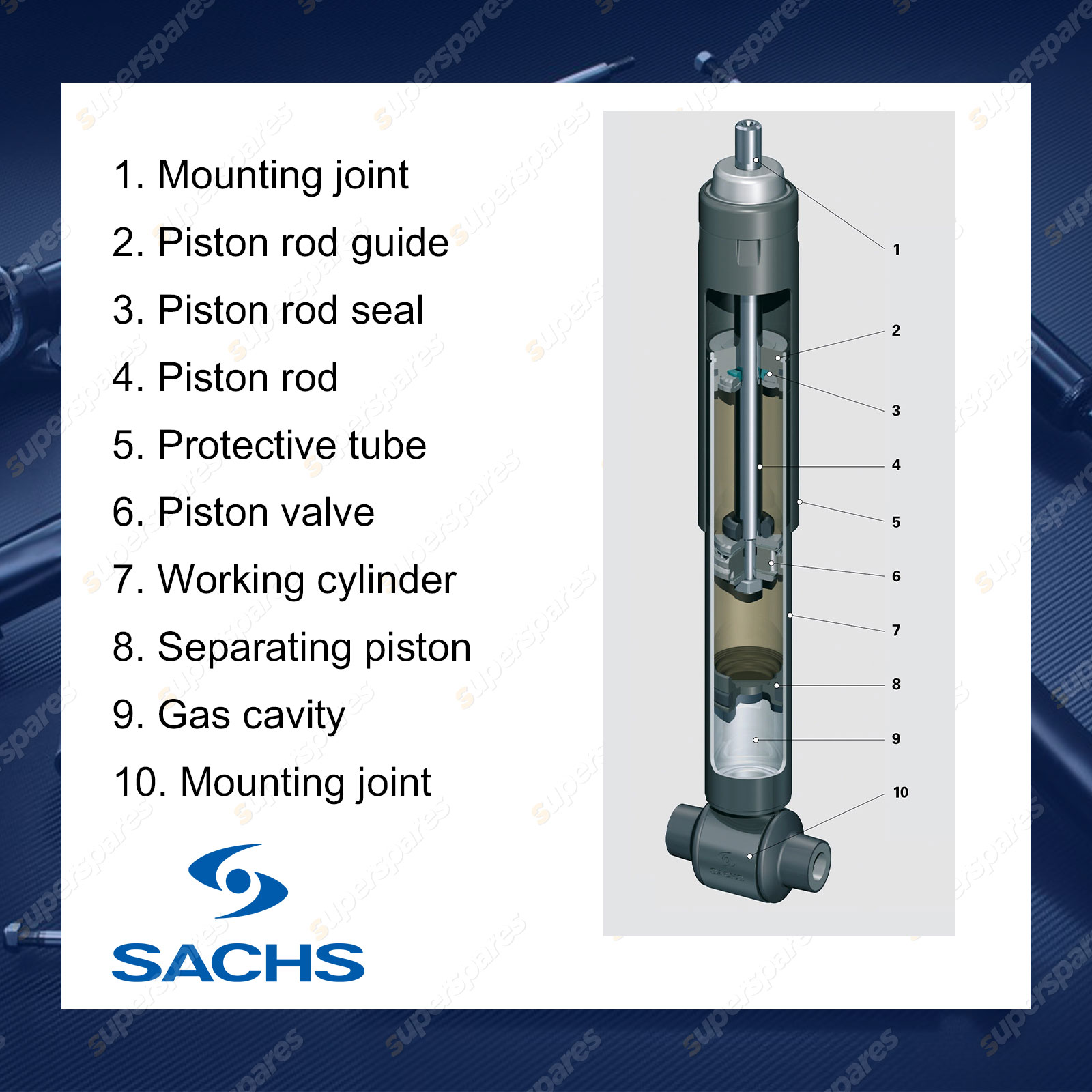

1. Mounting joint

6. Piston valve

2. Piston rod guide

7. Working cylinder

3. Piston rod seal

8. Separating piston

4. Piston rod

9. Gas cavity

5. Protective tube

10. Mounting joint

Compression stage
Vehicle vibrations push the shock absorber together.
The piston valve provides resistance against the oil that flows up from the cavity below the piston. This slows down the downstroke.
The gas cushion compresses by the volume of the retracting piston rod.

Rebound stage
Vehicle vibrations pull the shock absorber apart.
The piston valve provides resistance against the oil that flows down from the cavity above the piston. This slows down the upstroke.
The gas cushion expands by the volume of the extending piston rod.

SACHS history

The history of the SACHS brand starts in 1894 when the toolmaker and name-giver Ernst Sachs filed his first bicycle wheel hub patent application

OE quality

SACHS products are manufactured from high-quality materials and reflect the state of the art. They stand for high performance and reliability. Every year, more than 10 million new vehicles equipped with SACHS dampers and shock absorbers roll off the production line.

Quality across borders

SACHS offers products for various fields of application that cover almost all vehicle types. This applies to the European as well as the Asian vehicle market.

Quality certification according to regulation (EU) No. 461/2010

Products sold by ZF Aftermarket under the SACHS brand are spare parts within the meaning of Article 1 Figure (1) h) of Regulation (EU) No. 461/2010 dated May 27, 2010, and meet the criteria of Figures (19) and/or (20) of the supplementary guidelines on vertical restraints in agreements concerning the sale and servicing of automobiles and the sale of automobile replacement parts to the aforementioned regulation.
