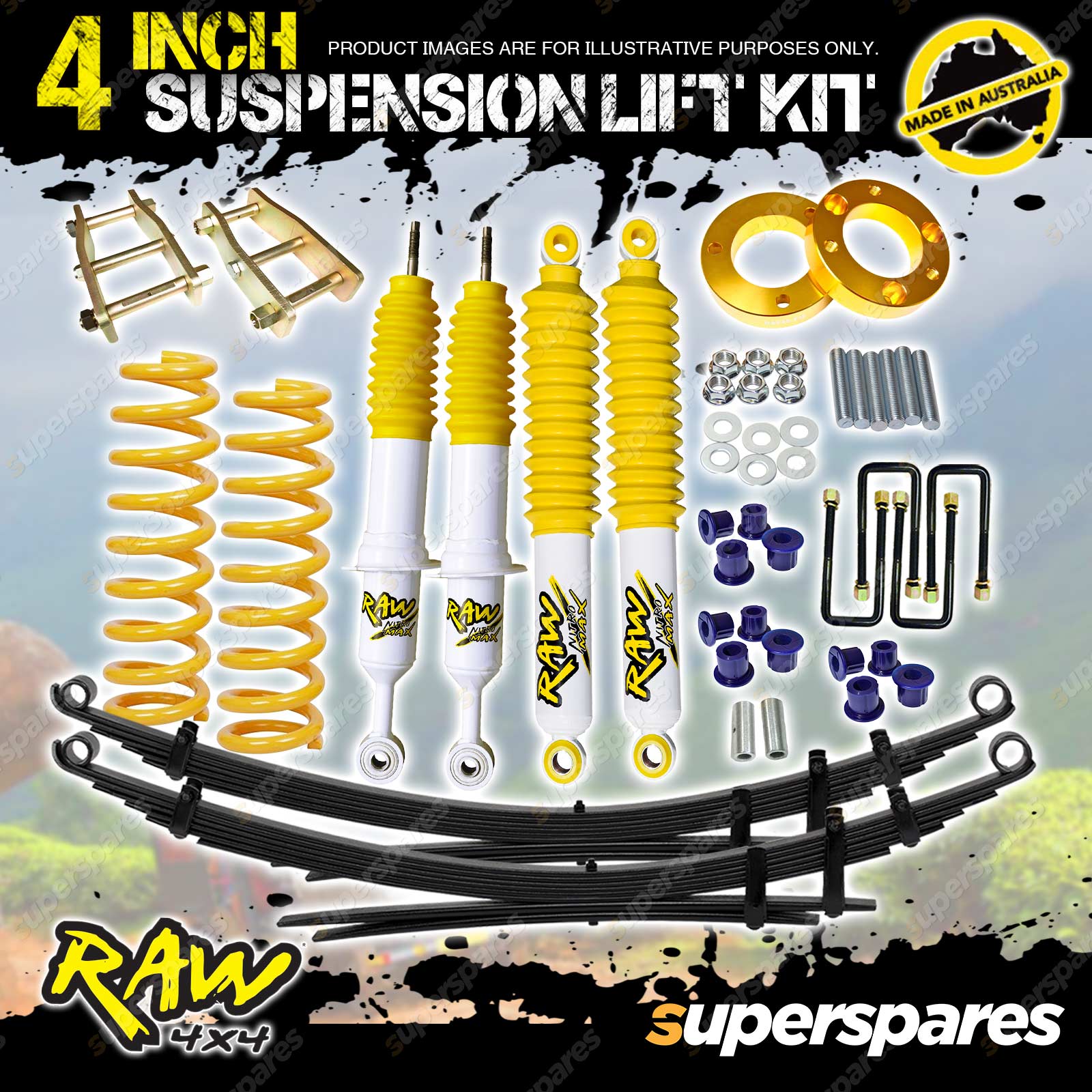

100mm Raw Nitro Max Shock Suspension Lift Kit for Toyota Hilux KUN26 GGN25

Name: 100mm Raw Nitro Max Shock Suspension Lift Kit for Toyota Hilux KUN26 GGN25
Brand: RAW 4x4
Price: 2085.95 AUD
Availability: InStock

RAW-SLK-C2011-G021

$2,085.95

List Price $2,503.14

SAVE $417.19 (17%)

In Stock 1 Business Day Dispatch or Click to Collect

Hurry. Stock Selling Fast

Free Delivery

Free Shipping Storewide excludes heavy, bulky items & regional areas

Seen It Cheaper?

Ask for a Superspares deal.

Call us 1300 791 058

National Warranty

Genuine manufacturer warranty, claimable online Australia wide.

Delivery Options

Local Pickup Available

Standard Shipping - FREE
Additional freight charges may apply for heavy, bulky items or deliveries to rural and remote areas, with customer service adjusting costs as needed.

Local Pickup - FREE
Pick Up is Available from Sydney, Melbourne and Brisbane warehouses upon receival of confirmation.

Calculate Shipping

Afterpay
Bank Deposit
PayPal Express
Web Payments
Web Payments
American Express
MasterCard
Visa

Product Description

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.
Copyright © 2014 - 2024 Superspares. All rights reserved.

Please note at the moment our couriers can only deliver to business addresses, if you put a residential address we'll contact you for a business address for FREIGHT items. We can get it dropped at nearby depots for collection if that is more convenient. Calculated shipping price at checkout is for Metro Brisbane, Sydney, Melbourne ONLY. If you are out of these areas either contact us for freight quote or we will call you prior to shipping for the extra freight charge.

LOCATION	DESCRIPTION	QTY	NOTE
Front	Raw 4x4 Nitro Max Shock Absorber	2	45mm Bore Nitrogen Gas Cell Technology
Rear	Raw 4x4 Nitro Max Shock Absorber	2	45mm Bore Nitrogen Gas Cell Technology
Front	Raw 4x4 Linear Rate Coil Springs	2	0 - 50kg
Rear	Medium Duty Leaf Springs	2	0 - 200kg
Front	High Quality Strut Spacer	2
Rear	Leaf Springs U bolt + Bush Kit + Extended Shackles

TO SUIT :

Toyota Hilux KUN26R Vigo GGN25R UTE Single/Dual Cab 05-15

Available Upgrade&Options:

LOCATION	SPRING RATING OPTION	QTY	PRICE	LINK
Front	Heavy Duty Coil Springs(Suspension with Bull Bar)	2	+40 Pair	Click here to upgrade
Rear	Heavy Duty Leaf Springs Constant 200 - 400kg	2	+80 Pair	Click here to upgrade
Rear	Extra Heavy Duty Leaf Springs 400kg Plus	2	+120 Pair	Click here to upgrade

Accessories You May Interested:

Position	Description	Price	eBay Link
	8 Pcs Ball Joint Tie Rod Rack End Kit	+220	Click Here
Rear	Pair 2" 50mm Lift Kit Extended Shackles	+200	Click Here
Front	4Pcs Bendix 4WD Brake Pads	+75	Click Here
Front + Rear	3 Pcs 2 - 3 Inch Extended Brake Hose Line	+188	Click Here
	Drivetech 4x4 CV Joint Drive Shaft	+163	Click Here

*Please Advise Year Model, So We Can Make Sure Send You The Right Parts

Australia's terrain is some of the most diverse and demanding in the world.
This is why it is essential your 4x4 is equipped with the right suspension components. If you are considering fitting load bearing aftermarket accessories, travelling prolonged periods on corrugated tracks or just want to improve the performance of your 4WD you need to upgrade your suspension.

RAW 4x4 Nitro Max is the heavy weight contender of our shock absorber range.

360° welds & one piece eye rings for increased strength and durability;

Flexible and durable polyurethane bushes;

Large truck size 41 mm sintered metal piston;

Nitrogen Gas Cell to maintain oil viscosity and dampening performance;

Increased oil capacity vastly improving the shock absorbers ability to dissipate heat and operate cooler over long distances and Constant high speeds;

Viton seal & high temperature oil to withstand higher operating temperatures longer, outlasting standard oils and rubber seals.

A set of RAW 4x4 coil springs will significantly improve the ability of your 4x4 to carry this additional weight whilst enhancing the vehicles performance in terms of stability, load carrying and towing capabilities.

X5K high strength steel wire with superior resistance to sag;

Formed on precision mandrels with state of the art heat treatment;

Shot peened, fully scragged and load tested;

Durable powder coated finish;

Made in Australia.

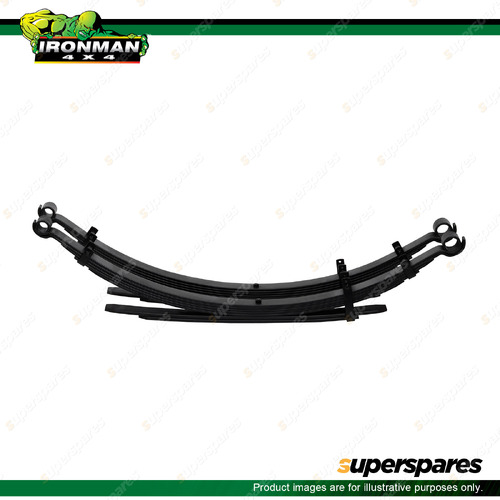

Leaf springs not only support the weight of your vehicle but position the vehicles axle and act as a torque rod to stop "axle wrap"upon acceleration.

Drawn tapered &diamond cut leafs to aid in load distribution over a larger surface area.

Inter leaf anti friction liners between the springs leafs to reduce friction and improve ride comfort.

High strength alignment clips with nylon insulators to reduce wear and noise.

Nyloc nuts are used to secure the clips to prevent losening which can lead to tyre damage.

Two stage leaf pack for additional support when the vehicle is heavily laden.
